105S Threaded Cast Iron Gate Valve- OS&Y, Rising Stem
105S Threaded Cast Iron Gate Valve- OS&Y, Rising Stem
- Gate Valve-Threaded Ends
- 200 WOG-125 WSP
- Iron Body, Bronze Mounted (IBBM)
- Bolted Bonnet
- Outside Stem & Yoke Rising Stem
- Solid Wedge
- Conforms to MSS-SP70
- Threaded Ends Conform to ANSI B1.20.1
- Bituminous Coating
- Only Available in 2"
Limited Quantities Available - No Longer Stocking

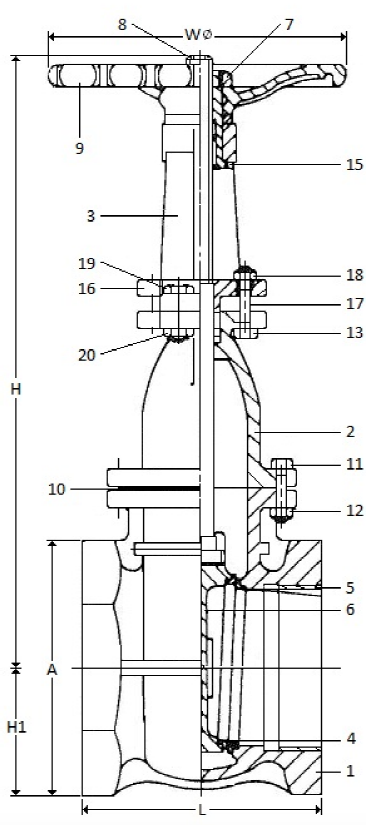

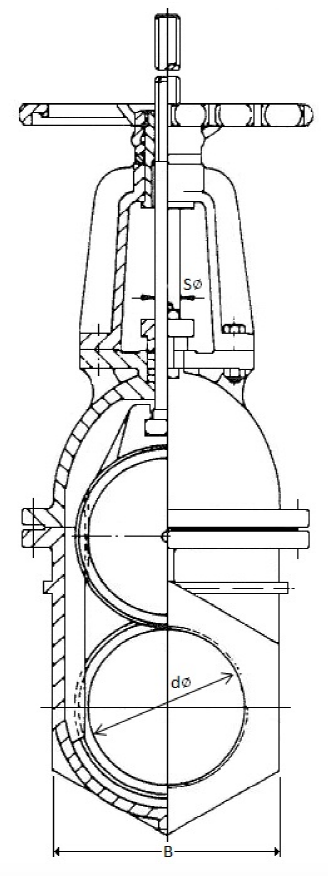

Dimensions
| PART # | SIZE dØ | L | A | B | WØ | H | H1 | SØ | WT. LBS. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 105S08 | 2" | 5.00 | 3.63 | 3.13 | 6.31 | 11.50 | 1.81 | 0.75 | 25.10 | ||||
| 105S09 | 2-1/2" | 5.50 | 4.31 | 3.75 | 7.50 | 12.50 | 2.16 | 0.75 | 25.50 | ||||
| 105S10 | 3" | 5.94 | 5.00 | 4.31 | 7.69 | 14.94 | 2.50 | 0.75 | 38.30 | ||||
| 105S11 | 4" | 7.50 | 7.06 | 6.06 | 9.88 | 17.69 | 3.53 | 0.88 | 66.00 | ||||
| 105S13 | 6" | 9.06 | 9.44 | 8.19 | 11.81 | 22.25 | 4.72 | 1.00 | 132.90 | ||||
Material Specifications
| NO. | PART | MATERIAL |
ASTM DESIGNATION |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | Body | Cast Iron | A 126 Class B | ||||||||
| 2 | Bonnet | Cast Iron | A 126 Class B | ||||||||
| 3 | Yoke | Cast Iron | A 126 Class B | ||||||||
| 4 | Disc Seat Ring | Bronze | B 62 | ||||||||
| 5 | Body Seat Ring | Bronze | B 62 | ||||||||
| 6 | Disc | Cast Iron | A 126 Class B | ||||||||
| 7 | Hand Wheel Nut | Steel | A 307 Grade B | ||||||||
| 8 | Stem | Brass | B 124 | ||||||||
| 9 | Hand Wheel | Cast Iron | A 126 Class B | ||||||||
| 10 | Bonnet Gasket | Non Asbestos Sheet | F 104P 1141 A | ||||||||
| 11 | Bonnet Body Bolt | Steel | A 307 Grade B | ||||||||
| 12 | Bonnet Body Nut | Steel | A 307 Grade B | ||||||||
| 13 | Packing | Carbonized Fiber | D 4102 | ||||||||

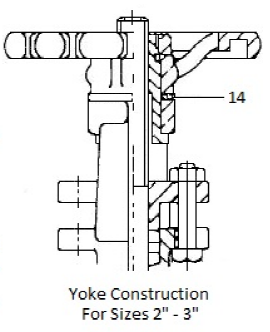

| 14 | Hand Wheel Washer | Bronze | B 62 | ||||||||
| 15 | Yoke Sleeve | Bronze | B 62 | ||||||||
| 16 | Gland | Cast Iron | A 126 Class B | ||||||||
| 17 | Gland Bolt | Steel | A 307 Grade B | ||||||||
| 18 | Gland Nut | Steel | A 307 Grade B | ||||||||
| 19 | Yoke Bonnet Bolt | Steel | A 307 Grade B | ||||||||
| 20 | Yoke Bonnet Nut | Steel | A 307 Grade B | ||||||||
