145LF Lead Free Y Strainer- Bronze, with Brass Plug
145LF Lead Free Y Strainer- Bronze, with Brass Plug
• Lead Free Bronze
• 300 WOG-150 SWP
• 20 Mesh Stainless Steel Screen
• Screwed Cap with Plug
• Threaded Ends Comply with ANSI B2.1
• Solder Ends Comply with ANSI B16.18
• Sizes 1/4" - 2"

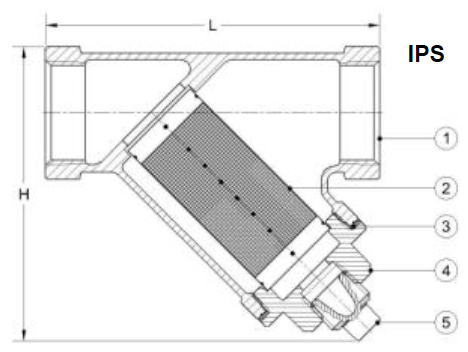

145LF Lead Free Y Strainer - Bronze, with Brass Plug - Material Specifications
| No | Part | Material | |||
|---|---|---|---|---|---|
| 1 | Body | Bronze C89520 | |||
| 2 | Filter | Stainless Steel 304 | |||
| 3 | Packing | Fibre | |||
| 4 | Bonnet | Bronze C89520 | |||
| 5 | Plug | Bronze C89520 | |||
Dimensions
| Part # IPS | Part # C X C | Size |
L IPS |
H IPS |
L C X C |
H C X C |
Tap Size |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 145T01LF | - | 1/4” | 3.21 | 3.03 | - | - | 3/8” | |||||
| 145T02LF | - | 3/8” | 3.23 | 3.03 | - | - | 3/8” | |||||
| 145T03LF | 145C03LF | 1/2” | 3.23 | 3.01 | 3.43 | 2.84 | 3/8” | |||||
| 145T04LF | 145C04LF | 3/4” | 3.94 | 3.49 | 4.31 | 3.27 | 3/8” | |||||
| 145T05LF | 145C05LF | 1” | 4.53 | 4.04 | 5.10 | 3.78 | 1/2” | |||||
| 145T06LF | 145C06LF | 1-1/4” | 5.34 | 4.71 | 5.91 | 4.37 | 1/2” | |||||
| 145T07LF | 145C07LF | 1-1/2” | 6.21 | 5.02 | 6.90 | 4.83 | 1/2” | |||||
| 145T08LF | 145C08LF | 2” | 7.45 | 6.15 | 8.63 | 5.91 | 1/2” | |||||
