203TLLF Lead Free Brass Loose Key Garden Valve
Downloads:
203TLLF Lead Free Brass Loose Key Garden Valve
• Lead Free Brass
• 125 WOG
• Loose Key
• Hose x FIP
• NSF Approved
• Sizes 1/2" - 1"
Replacement Keys Available

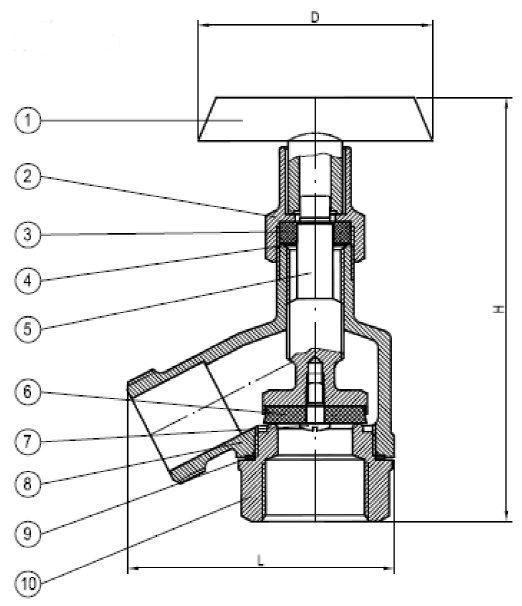

203TLLF Lead Free Brass Loose Key Garden Valve - Material Specifications
| No. | Part | Material | ||||||
|---|---|---|---|---|---|---|---|---|
| 1 | Key | Zinc | ||||||
| 2 | Packing Nut | Brass C89550 | ||||||
| 3 | Packing | Rubber SAE No. 1052# | ||||||
| 4 | Washer | Stainless Steel 304/306 | ||||||
| 5 | Stem | Brass C89550 | ||||||
| 6 | Seat Washer | Rubber SAE No. 1052# | ||||||
| 7 | Seat Screw | Brass C89550 | ||||||
| 8 | Body | Brass C89550 | ||||||
| 9 | Packing | Rubber SAE No. 1052# | ||||||
| 10 | Bonnet | Brass C89550 | ||||||
Dimensions
| Part # | Size | H | L | D | ||
|---|---|---|---|---|---|---|
| 203TL3LF | 1/2” | 3.89 | 2.46 | 2.16 | ||
| 203TL4LF | 3/4” | 3.91 | 2.46 | 2.16 | ||
| 203TL5LF | 1” | 4.02 | 2.55 | 2.16 | ||
