205LF Lead Free Boiler Drain
Downloads:
205LF Lead Free Boiler Drain
• Lead Free Brass
• 125 WOG
• Boiler Drain-with Stuffing Box
• Hose x 1/2" MIP/ 1/2" Solder and 3/4" MIP
• Hose x FIP 1/2" & 3/4"

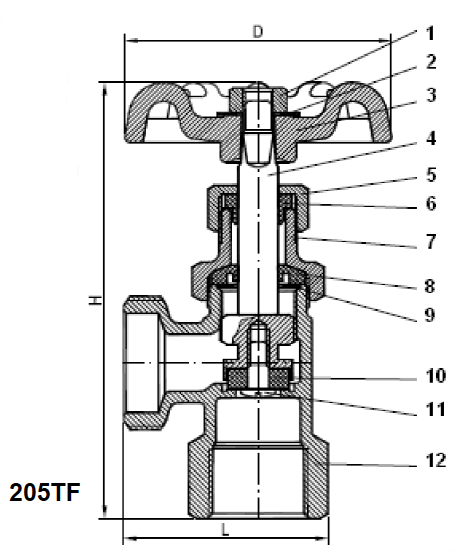

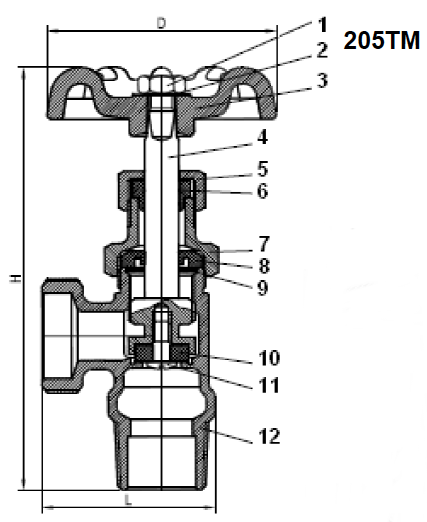

205LF Lead Free Boiler Drain - Material Specifications
| No. | Part | Material | |||||
|---|---|---|---|---|---|---|---|
| 1 | Wheel Nut | Hot Rolled SAE. 1010R | |||||
| 2 | Name Plate | Aluminum | |||||
| 3 | Handle Wheel | Cast Iron | |||||
| 4 | Stem | Brass C89550 | |||||
| 5 | Packing Nut | Brass C89550 | |||||
| 6 | Packing | Rubber SAE No. 1052# | |||||
| 7 | Bonnet | Brass C89550 | |||||
| 8 | Packing | Rubber SAE No. 1052# | |||||
| 9 | Washer | Stainless Steel 304/306 | |||||
| 10 | Seat Packing | Rubber SAE No. 1052# | |||||
| 11 | Seat Screw | Brass C89550 | |||||
| 12 | Body | Brass C89550 | |||||
Dimensions
| Part # | Size | H | L | D | ||||
|---|---|---|---|---|---|---|---|---|
| 205TF3LF | 1/2” Female | 3.45 | 1.62 | 2.11 | ||||
| 205TF4LF | 3/4” Female | 3.41 | 1.80 | 2.11 | ||||
| 205TM3LF | 1/2” Male | 3.63 | 1.60 | 2.11 | ||||
| 205TM4LF | 3/4” Male | 3.66 | 1.73 | 2.11 | ||||
