207LF Lead Free Hose Bibb- No Kink
207LF Lead Free Hose Bibb- No Kink
• Lead Free Brass
• ISO 9002
• 125 WOG
• Hose Bibb-No Kink
• NSF Approved
• Hose x MIP or FIP 1/2" and 3/4"
• Sweat: 3/4" SWT

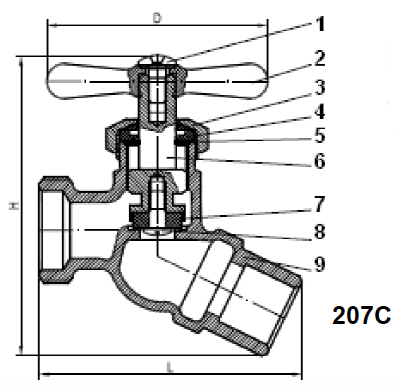

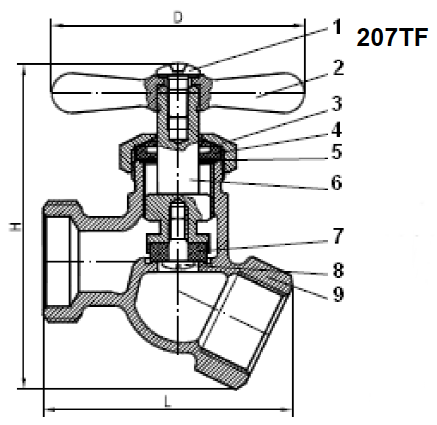

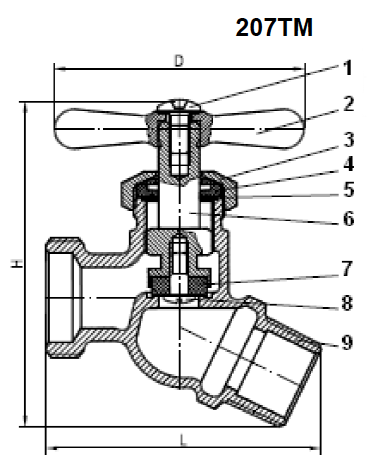

207LF Lead Free Hose Bibb - No Kink - Material Specifications
| No. | Part | Material | ||||
|---|---|---|---|---|---|---|
| 1 | Bolt | Rod Carbon Steel SAE. 106 | ||||
| 2 | Handle | Zinc | ||||
| 3 | Bonnet | Brass C89550 | ||||
| 4 | Packing | Rubber SAE No. 1052# | ||||
| 5 | Washer | Stainless Steel 304/306 | ||||
| 6 | Stem | Brass C89550 | ||||
| 7 | Seat Packing | Rubber SAE No. 1052# | ||||
| 8 | Seat Screw | Brass C89550 | ||||
| 9 | Body | Brass C89550 | ||||
Dimensions
| Part # | Size | H | L | D | |||
|---|---|---|---|---|---|---|---|
| 207TF3LF | 1/2” Female | 2.86 | 2.42 | 2.19 | |||
| 207TF4LF | 3/4” Female | 2.88 | 2.17 | 2.19 | |||
| 207TM3LF | 1/2” Male | 2.86 | 2.42 | 2.19 | |||
| 207TM4LF | 3/4” Male | 2.86 | 2.42 | 2.19 | |||
| 207C04LF | 3/4” Sweat | 2.98 | 2.61 | 2.19 | |||
