450TLF Lead Free Brass Compression Coupling - Short
Downloads:
450TLF Lead Free Brass Compression Coupling - Short
• Lead Free Brass
• Compression Couplings
• 3 Inch Length - Short Pattern

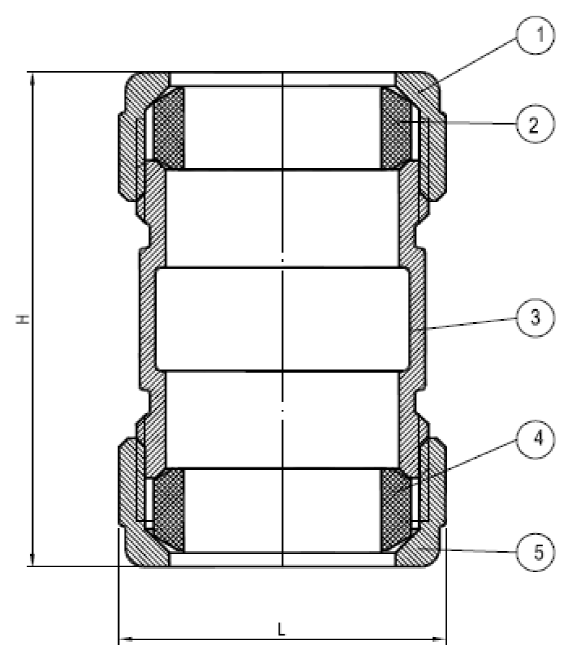

450TLF Lead Free Brass Compression Coupling - Short - Material Specifications
| No. | Part | Material | |||
|---|---|---|---|---|---|
| 1 | Packing Nut | Brass B584 C85710 | |||
| 2 | Packing | EPDM - SE-719F | |||
| 3 | Body | Brass C89550 | |||
| 4 | Packing | EPDM - SE-719F | |||
| 5 | Packing | Brass B584 C85710 | |||
Dimensions
| Part # | IPS | CTS | H | L | ||||
|---|---|---|---|---|---|---|---|---|
| 450T02LF | 3/8” | 1/2” | 2.56 | 1.34 | ||||
| 450T03LF | 1/2” | 3/4” | 2.82 | 1.56 | ||||
| 450T04LF | 3/4” | 1” | 3.25 | 1.95 | ||||
| 450T05LF | 1” | 1-1/4” | 2.84 | 2.19 | ||||
| 450T06LF | 1-1/4” | 1-1/2” | 3.09 | 2.56 | ||||
| 450T07LF | 1-1/2” | - | 3.59 | 2.80 | ||||
| 450T08LF | 2” | - | 3.76 | 3.27 | ||||
