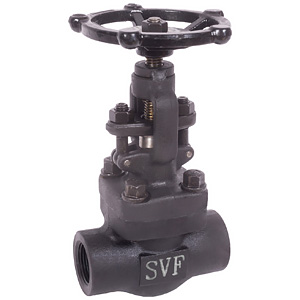

505FC-8 Forged Carbon Steel Globe Valve - Threaded & Socket Weld

505FC-8 Forged Carbon Steel Globe Valve - Threaded & Socket Weld

• Trim 8 - Forged Carbon Steel
• Class 800
• Maximum Pressure 1975 PSI
• Maximum Temperature 850ºF
• Bolted Bonnet
• API 602 Compliant
• Standard NACE MRO175
• Sizes 1/4” -2”

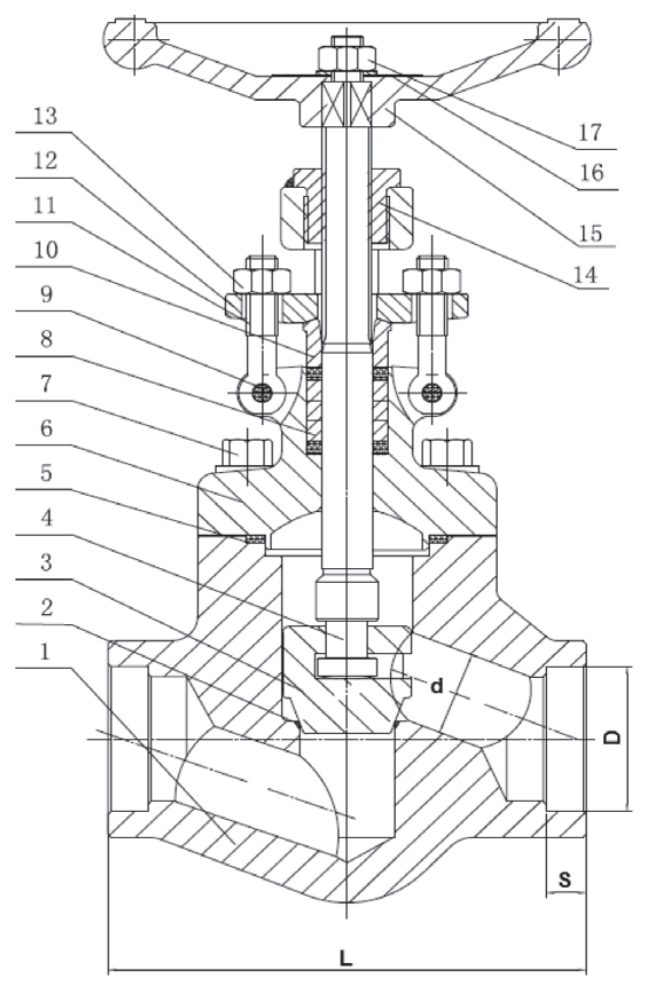

Material Specifications

No. Part
Material
Carbon
Material
Stainless
1 Body A105 F316L
2 Seat STL STL
3 Disc 13Cr F316L
4 Stem 410 F316L
5 Gasket
SS304 Flexible
Graphite
SS16 Flexible
Graphite
6 Bonnet A105 F316L
7 Bolt B7 B8M
8 Packing Graphite Graphite
9 Pin SS 304
10
Pkg Press
Sleeve
410 F316L
11 Live Bolt B7 B8M
12
Pkg Press
Plate
A105 F316L
13 Hex Nut 2H 8M
14 Stem Nut 1035 1035
15 Handwheel A197 A197
16 Name Plate SS SS
17 Lock Nut CS CS

Dimensions

Size-NPT L D d S
1/4” 3.11 0.56 0.28 0.38
3/8” 3.11 0.69 0.41 0.38
1/2” 3.11 0.86 0.41 0.38
3/4” 3.62 1.07 0.53 0.50
1” 4.37  1.33 0.71 0.50
1-1/4” 4.73 1.68 0.91 0.50
1-1/2” 4.73 1.92 1.14 0.50
2” 5.52 2.41  1.42 0.63

How to order 505F Series Globe Valves

Series Material Ends Sizes Trim
505F C-Carbon Steel T-Threaded 01-1/4” 8
    W-Socket Weld 02-3/8” 8
      03-1/2” 8
      04-3/4” 8
      05-1” 8
      06-1-1/4” 8
      07-1-1/2” 8
      08-2” 8
