AZ203TFLF Lead Free Aztec Bent Nose Garden Valve with Stuffing Box
Downloads:
AZ203TFLF Lead Free Aztec Bent Nose Garden Valve with Stuffing Box

• Lead Free Brass
• Graphite Packing
• 125 PSI
• Complies with ANSI/NSF 61 & NSF 372
• Epoxy Coated Oval Handle
• 1/2”, 3/4”, 1”

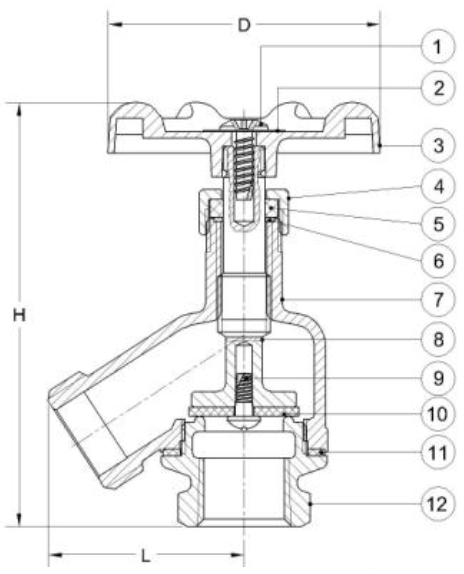

AZ203TFTL Lead Free Aztec Bent Nose Garden Valve with Stuffing Box - Material Specifications
No. | Part | Material | |||||
---|---|---|---|---|---|---|---|
1 | Handle Bolt | Stainless Steel 304/306 | |||||
2 | Name Plate | Aluminum | |||||
3 | Ellipse Handle | Zinc | |||||
4 | Packing Nut | Brass C89550 | |||||
5 | Gland Packing | BUNA | |||||
6 | Washer | Stainless Steel 304/306 | |||||
7 | Body | Brass C89550 | |||||
8 | Stem | Brass C89550 | |||||
9 | Seat Screw | Stainless Steel 304/306 | |||||
10 | Seat Packing | BUNA | |||||
11 | Packing | FIBRE | |||||
12 | Bonnet | Brass C89550 |
Dimensions
Part # | Size | D | H | L | ||||
---|---|---|---|---|---|---|---|---|
AZ203TF3LF | 1/2” FIP X Hose | 2.44 | 3.86 | 1.69 | ||||
AZ203TF4LF | 3/4” FIP X Hose | 2.44 | 3.86 | 1.69 | ||||
AZ203TF5LF | 1” FIP X Hose | 2.44 | 4.10 | 1.69 |
