AZ205C034LF Lead Free Aztec Boiler Drain with Stuffing Box, Copper
AZ205C034LF Lead Free Aztec Boiler Drain with Stuffing Box, Copper
• Lead Free Brass
• Graphite Packing
• 125 PSI
• Complies with ANSI/NSF 61 & NSF 372
• Epoxy Coated Round Handle
• 3/4” Cop FTG & 1/2” Cop SWT

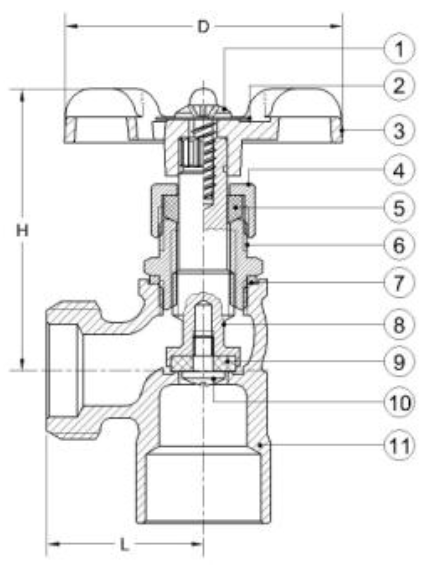

AZ205C034LF Lead Free Aztec Boiler Drain with Stuffing Box, Copper - Material Specifications
| No. | Part | Material | |||
|---|---|---|---|---|---|
| 1 | Handle Bolt | Stainless Steel 304/306 | |||
| 2 | Name Plate | Aluminum | |||
| 3 | Handle Wheel | Zinc | |||
| 4 | Packing Nut | Brass C89550 | |||
| 5 | Gland Packing | Graphite | |||
| 6 | Bonnet | Brass C89550 | |||
| 7 | Packing | Plastic | |||
| 8 | Stem | Brass C89550 | |||
| 9 | Seat Packing | BUNA | |||
| 10 | Seat Screw | Stainless Steel 304/306 | |||
| 11 | Body | Brass C89550 | |||
Dimensions
| Part # | Size | D | H | L | ||||
|---|---|---|---|---|---|---|---|---|
| AZ205C034LF | 3/4” C X C X 3/4” Hose | 2.13 | 2.21 | 1.14 | ||||
