AZ207TMLF Lead Free Aztec No Kink Hose Bibb with Tee Handle, MIP- CSA
Downloads:
AZ207TMLF Lead Free Aztec No Kink Hose Bibb with Tee Handle, MIP- CSA
• Lead Free Brass
• Graphite Packing
• 125 PSI
• Complies with ANSI/NSF 61 & NSF 372
• Epoxy Coated Tee Handle
• 1/2” & 3/4” MIP

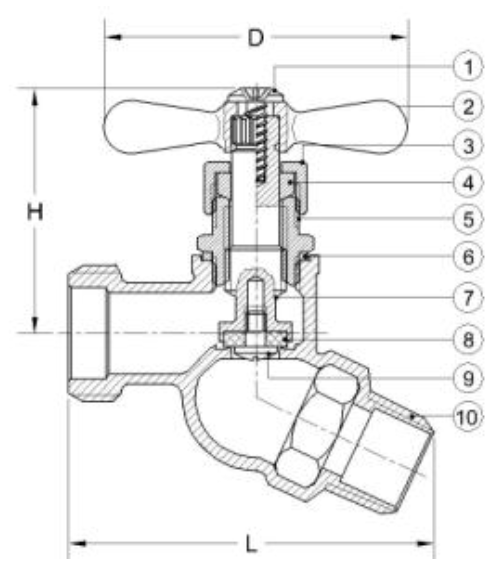

AZ207TMLF Lead Free Aztec No Kink Hose Bibb with Tee Handle, MIP - CSA - Material Specifications
| No. | Part | Material | ||||
|---|---|---|---|---|---|---|
| 1 | Handle Bolt | Stainless Steel 304 | ||||
| 2 | T-Handle | Zinc | ||||
| 3 | Packing Nut | Brass C89550 | ||||
| 4 | Gland Packing | Graphite | ||||
| 5 | Bonnet | Brass C89550 | ||||
| 6 | Packing | Plastic | ||||
| 7 | Stem | Brass C89550 | ||||
| 8 | Seat Packing | BUNA | ||||
| 9 | Seat Screw | Stainless Steel 304 | ||||
| 10 | Body | Brass C89550 | ||||
Dimensions
| Part # | Size | D | H | L | |
|---|---|---|---|---|---|
| AZ207TM3LF | 1/2” | 2.30 | 1.97 | 2.88 | |
| AZ207TM4LF | 3/4” | 2.30 | 1.97 | 2.97 | |
