AZ207TR3LF Lead Free Aztec No Kink Hose Bibb with Tee Handle, CPR Compression with Nut & Ferrule
Downloads:
AZ207TR3LF Lead Free Aztec No Kink Hose Bibb with Tee Handle, CPR Compression with Nut & Ferrule
• Lead Free Brass
• Graphite Packing
• 125 PSI
• Complies with ANSI/NSF 61 & NSF 372
• Epoxy Coated Tee Handle
• 1/2” Compression with Nut and Ferrule

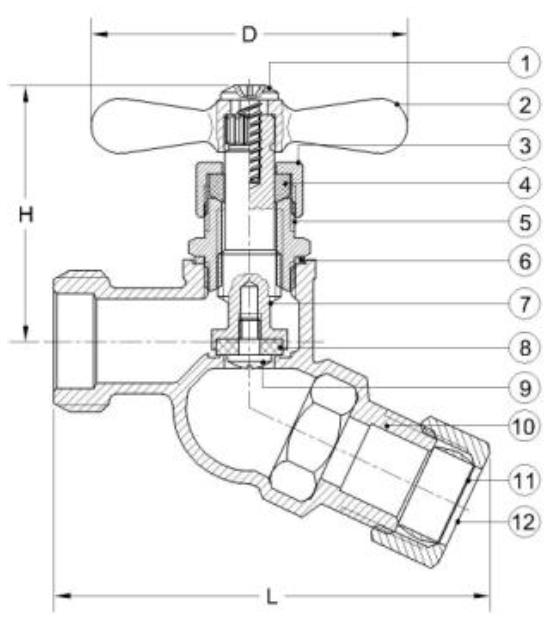

AZ207TR3LF Lead Free Aztec No Kink Hose Bibb with Tee Handle, CPR Compression with Nut & Ferrule - Material Specifications
| No. | Part | Material | |||
|---|---|---|---|---|---|
| 1 | Handle Bolt | Stainless Steel 304/306 | |||
| 2 | T Handle | Zinc | |||
| 3 | Packing Nut | Brass C89550 | |||
| 4 | Gland Packing | Graphite | |||
| 5 | Bonnet | Brass C89550 | |||
| 6 | Packing | Plastic | |||
| 7 | Stem | Brass C89550 | |||
| 8 | Seat Packing | BUNA | |||
| 9 | Seat Screw | Stainless Steel 304/306 | |||
| 10 | Body | Brass C89550 | |||
| 11 | Sleeve | Brass C89550 | |||
| 12 | Nut | Brass C89550 | |||
Dimensions
| Part # | Size | D | H | L | ||||
|---|---|---|---|---|---|---|---|---|
| AZ207TR3LF | 1/2 “ (5/8” OD) Comp X 3/4” Hose | 2.36 | 1.97 | 3.27 | ||||
