FY-692LF Lead Free Hose Bibb- Rough Brass, Plain End, MIP Inlet
Downloads:
FY-692LF Lead Free Hose Bibb- Rough Brass, Plain End, MIP Inlet
• Lead Free Rough Brass Hose Bibb
• Plain End Outlet
• Pressure Rating: 80 - 125 PSI
• 1/2" MIP Inlet

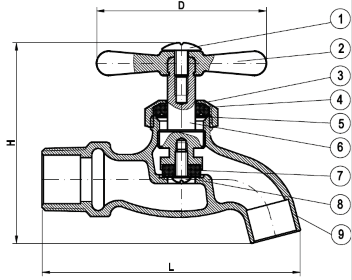

Dimensions
| Part # | Size | H | L | L1 | D | ||
|---|---|---|---|---|---|---|---|
| FY-692LF | 1/2” | 2.64 | 3.36 | 0.87 | 2.19 | ||
Material Specifications
| No. | Part | Material | |||||
|---|---|---|---|---|---|---|---|
| 1 | Bolt | JIS G3507-1 | |||||
| 2 | Handle | Zinc Z30A | |||||
| 3 | Bonnet | Brass B124 C37700 | |||||
| 4 | Packing | Buna SN-719F | |||||
| 5 | Washer | Stainless Steel 304 | |||||
| 6 | Stem | Brass C 46400 | |||||
| 7 | Seat Packing | Buna SN-719F | |||||
| 8 | Seat Screw | JIS H3260 - C2600W | |||||
| 9 | Body | Brass C 46400 | |||||
| * These product complies with 0.25% weighted average lead content on wetted surfaces in accordance with Safe Water Drinking Act (SDWA) / Federal Public Law No. 111-380. |
