Lead Free CPVC x Pex F1960 Cold Expansion Transition Fitting
Lead Free CPVC x Pex F1960 Cold Expansion Transition Fitting
• For use in new and retrofit installations in residential and light commercial plumbing systems
• Durable over molded one-piece fitting eliminates union tail piece connection and possible leak path
• Molded CPVC end piece with slip connection
• Pressure rated to 100 PSI at 180° F
• Manufactured to the material and dimensional requirements of ASTM D-2846
• ASTM F1960, UPC, NSF/ANSI 14 Approved
• Stocked in sizes 1/2” – 1”
.jpg)
Material Specifications

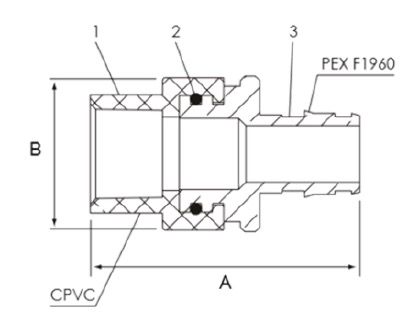

Dimensions
| No. | Part | Material |
|---|---|---|
| 1 | CPVC Connector | CPVC TempRite 88096 |
| 2 | O-Ring | Rubber NBR |
| 3 | Pex Connector | Brass ASTM C46400 |
| Part # | Size | A | B |
|---|---|---|---|
| CPVCPXCE03LF | 1/2" PEX F1960 x CPVC | 1.91 | 1.10 |
| CPVCPXCE04LF | 3/4" PEX F1960 x CPVC | 2.34 | 1.29 |
| CPVCPXCE05LF | 1" PEX F1960 x CPVC | 2.89 | 1.57 |
