AZ205TMLF Lead Free Aztec Boiler Drain with Stuffing Box, MIP
Downloads:
AZ205TMLF Lead Free Aztec Boiler Drain with Stuffing Box, MIP
• Lead Free Brass
• Graphite Packing
• 125 PSI
• Complies with ANSI/NSF 61 & NSF 372
• Epoxy Coated Round Handle
• 1/2” and 3/4” MIP

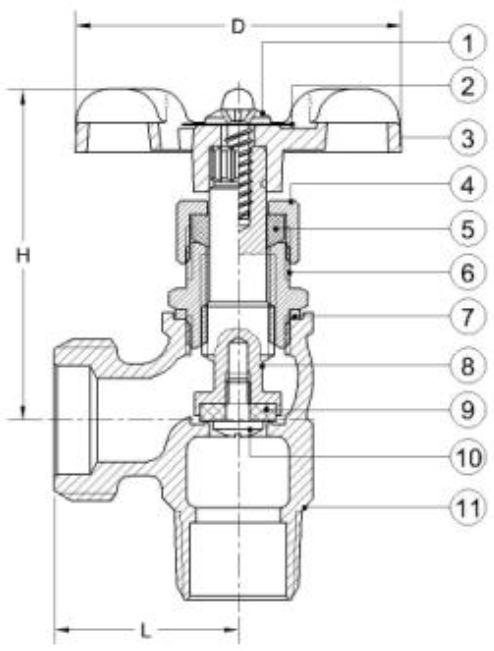

AZ205TMLF Lead Free Aztec Boiler Drain with Stuffing Box, MIP - Material Specifications
| No. | Part | Material | |||
|---|---|---|---|---|---|
| 1 | Handle Bolt | Stainless Steel 304/306 | |||
| 2 | Name Plate | Aluminum | |||
| 3 | Handle Wheel | Zinc | |||
| 4 | Packing Nut | Brass C89550 | |||
| 5 | Gland Packing | Graphite | |||
| 6 | Bonnet | Brass C89550 | |||
| 7 | Packing | Plastic | |||
| 8 | Stem | Brass C89550 | |||
| 9 | Seat Packing | BUNA | |||
| 10 | Seat Screw | Stainless Steel 304/306 | |||
| 11 | Body | Brass C89550 | |||
Dimensions
| Part # | Size | D | H | L | |||||
|---|---|---|---|---|---|---|---|---|---|
| AZ205TM3LF | 1/2” MIP X 3/4” Hose | 2.13 | 2.21 | 1.14 | |||||
| AZ205TM4LF | 3/4” MIP X 3/4” Hose | 2.13 | 2.21 | 1.14 | |||||
