525 Brass Inline Check Valve
Downloads:
525 Brass Inline Check Valve
• In-Line Check Valve-Spring Loaded
• 200 WOG
• Bronze Body
• BUNA-N Seat
• Threaded & Sweat Ends
• Threaded Ends Comply with ANSI B2.11
• Sweat Ends - Only Available in Lead Free
• 0.5 PSI Crack Pressure
• Sizes 1/2" - 2"
Styles: 525T Bronze Inline Check Valve | 525C Bronze Inline Check Valve
525T Bronze Inline Check Valve

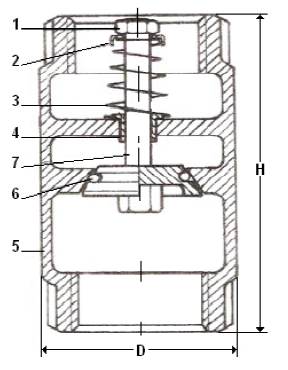

Material Specifications
| No. | PART | MATERIALS | |||
|---|---|---|---|---|---|
| 1 | Stem Nut | Stainless Steel | |||
| 2 | Spring Holder | Stainless Steel | |||
| 3 | Spring | Stainless Steel | |||
| 4 | Stem House | Polyacetal | |||
| 5 | Body | Bronze | |||
| 6 | O-Ring | BUNA-N | |||
| 7 | Stem | Bronze | |||
Dimensions
| Part # | Size | H | D | ||
|---|---|---|---|---|---|
| 525T03 | 1/2” | 2.40 | 1.26 | ||
| 525T04 | 3/4” | 2.74 | 1.50 | ||
| 525T05 | 1” | 3.23 | 1.77 | ||
| 525T06 | 1-1/4” | 3.63 | 2.13 | ||
| 525T07 | 1-1/2” | 4.04 | 2.36 | ||
| 525T08 | 2” | 5.04 | 3.03 | ||
525C Bronze Inline Check Valve
.png)
Material Specifications
| No. | PART | MATERIALS | |||
|---|---|---|---|---|---|
| 1 | Stem Nut | Stainless Steel | |||
| 2 | Spring Holder | Stainless Steel | |||
| 3 | Spring | Stainless Steel | |||
| 4 | Body | Bronze | |||
| 5 | O-Ring | BUNA-N | |||
| 6 | Stem | Bronze | |||
| 7 | Bonnet | Bronze | |||
Dimensions
| Part # | Size | H | D | ||
|---|---|---|---|---|---|
| 525C03 | 1/2” | 2.85 | 1.26 | ||
| 525C04 | 3/4” | 3.53 | 1.50 | ||
| 525C05 | 1” | 4.09 | 1.77 | ||
| 525C06 | 1-1/4” | 4.67 | 2.17 | ||
| 525C07 | 1-1/2” | 4.93 | 2.36 | ||
| 525C08 | 2” | 6.06 | 3.03 | ||
