115F Cast Iron Flanged Check Valve - IBBM
115F Cast Iron Flanged Check Valve - IBBM
• Check Valve-Flanged Ends
• 200 WOG-125 WSP
• C.I. Body, Bronze Mounted (IBBM) Seat
• One Boss
• Bituminous Coating
• Bolted Bonnet
• Conforms with MSS-SP-71
• Flanged Ends Conform with ANSI B16.1
• Sizes 2" - 12"
.png)

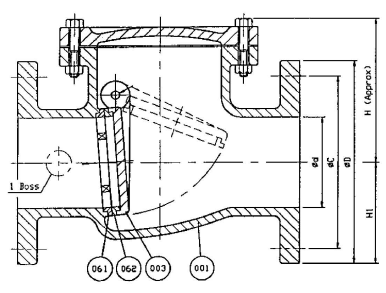

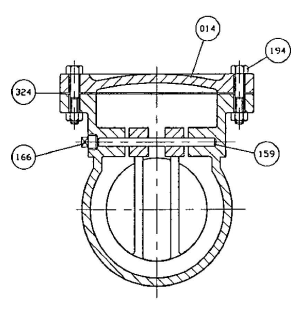

Material Specifications
| No. | Part | Material | ASTM Designation |
|---|---|---|---|
| 001 | Body | Cast Iron | A 126 Class B |
| 003 | Disc Renewable | Ductile Iron | A 536 Gr 65-45-12 |
| 014 | Cover | Cast Iron | A 126 Class B |
| 061 | Body Seat Ring | Bronze | B 62 |
| 062 | Disc Seat Ring | Bronze | B 62 |
| 159 | Hinge Pin | Stainless Steel | A 276 Type 304 |
| 166 | Plug Renewable | Malleable Iron | A 47 |
| 194 | Cover Bolt & Nut | Steel | A307 Grade B |
| 324 | Cover Gasket | Non Asbestos Sheet | Non-Asbestos |

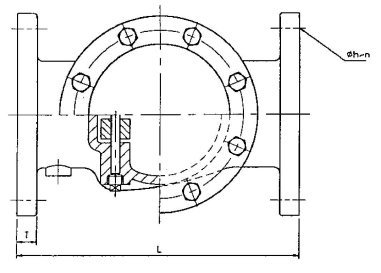

Dimensions
| Part # | SIZE INCH (d) | L |
ANSI B16.1 CL. 125 ØD |
ØC | Øh | n | T | H | H1 |
APPROX. WT. LBS. |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 115F08 | 2" | 8.00 | 6.00 | 4.75 | 0.75 | 4 | 0.63 | 4.19 | 3.00 | 20 | ||
| 115F09 | 2-1/2" | 8.50 | 7.00 | 5.50 | 0.75 | 4 | 0.69 | 4.94 | 3.50 | 31 | ||
| 115F10 | 3" | 9.50 | 7.50 | 6.00 | 0.75 | 4 | 0.75 | 5.94 | 3.75 | 42 | ||
| 115F11 | 4" | 11.50 | 9.00 | 7.50 | 0.75 | 8 | 0.94 | 6.69 | 4.50 | 69 | ||
| 115F12 | 5" | 13.00 | 10.00 | 8.50 | 0.88 | 8 | 0.94 | 7.31 | 5.00 | 80 | ||
| 115F13 | 6" | 14.00 | 11.00 | 9.50 | 0.88 | 8 | 1.00 | 7.69 | 5.50 | 115 | ||
| 115F14 | 8" | 19.50 | 13.50 | 11.75 | 0.88 | 8 | 1.13 | 9.25 | 6.75 | 231 | ||
| 115F15 | 10" | 24.50 | 16.00 | 14.25 | 1.00 | 12 | 1.19 | 10.69 | 8.00 | 357 | ||
| 115F16 | 12" | 27.50 | 19.00 | 17.00 | 1.00 | 12 | 1.25 | 12.63 | 9.50 | 498 | ||
