CVCUL Ductile Iron Wafer Style Check Valve - UL Listed
Downloads:
CVCUL Ductile Iron Wafer Style Check Valve - UL Listed
• Check Valve-Wafer Style Body
• 175 PSI
• Working Temp -10°C to 82°C
• Spring Loaded Double Disc
• Fusion Bonded Epoxy CoatedConforming to AWWA C550
• UL Listed
• Sizes 4" - 8"

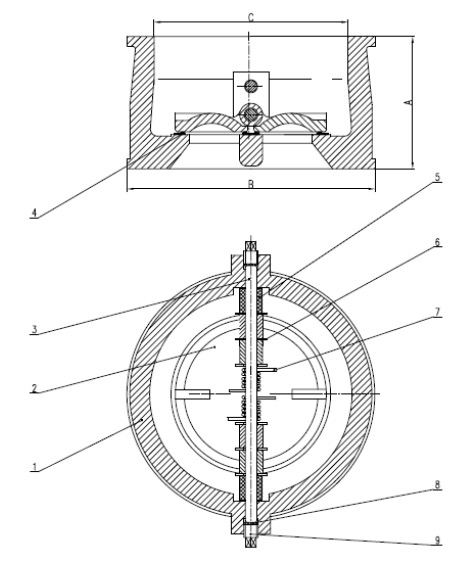

Dimensions
| Part # | Size | A | B | C | Weight (lbs) |
|---|---|---|---|---|---|
| CVC-4UL | 4” | 3-11/16 | 6-3/4 | 5-3/8 | 18.5 |
| CVC-6UL | 6” | 4-1/8 | 8-11/16 | 7 | 29.7 |
| CVC-8UL | 8” | 4-3/4 | 11 | 9-1/16 | 50.6 |
Material Specifications
| No. | Part | Material |
|---|---|---|
| 1 | Body | Cast Iron ASTM A126-B |
| 2 | Disc | Stainless Steel ASTM CF8 |
| 3 | Hing & Stop Pin | Stainless Steel AISI 416 |
| 4 | Seat | EPDM |
| 5 | W asher | PTFE |
| 6 | Spacer | PTFE |
| 7 | Spring | Stainless Steel AISI 304 |
| 8 | Gasket | PTFE |
| 9 | Pin Retainer | Stainless Steel ASTM CF8 |
