SC Cast Iron Silent Wafer Style Check Valve
SC Cast Iron Silent Wafer Style Check Valve
• Silent Wafer Style Check Valve
• 200 WOG-125 SWP
• Class 125
• Bolted Bonnet
• Conforms with MSS-SP-71
• Fits Flanges that Conform to ANSI B16.1
• Sizes 2" - 12"

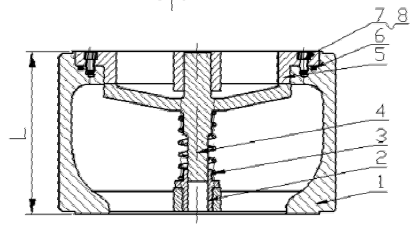

Material Specifications
| No. | Part | Material | |||
|---|---|---|---|---|---|
| 1 | Body | Cast Iron | |||
| 2 | Bushing | Stainless Steel 316 | |||
| 3 | Spring | Stainless Steel 316 | |||
| 4 | Disc | Bronze B62 | |||
| 5 | Seat | Bronze B62 | |||
| 6 | O-Ring | EPDM | |||
| 7 | Screw | Stainless Steel 304 | |||
| 8 | O-Ring | EPDM | |||

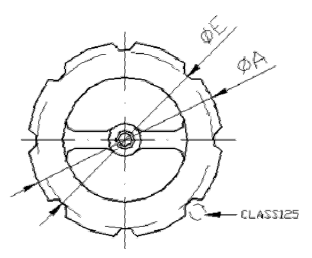

Dimensions
| Part # | Size | A | E | L |
Approx. WT. LBS. |
||||
|---|---|---|---|---|---|---|---|---|---|
| SC - 2 | 2” | 4.26 | 4.10 | 2.64 | 7 | ||||
| SC - 25 | 2-1/2” | 5.00 | 4.85 | 2.88 | 9 | ||||
| SC - 3 | 3” | 5.75 | 5.36 | 3.15 | 15 | ||||
| SC - 4 | 4” | 7.01 | 6.86 | 4.02 | 25 | ||||
| SC - 5 | 5” | 8.75 | 7.72 | 4.65 | 32 | ||||
| SC - 6 | 6” | 9.77 | 8.75 | 5.59 | 56 | ||||
| SC - 8 | 8” | 13.40 | 10.99 | 6.50 | 100 | ||||
| SC - 10 | 10” | 16.00 | 13.36 | 8.27 | 140 | ||||
| SC - 12 | 12” | 19.11 | 16.11 | 11.23 | 340 | ||||
