CL-140C Single Handle Kitchen Faucet
Downloads:

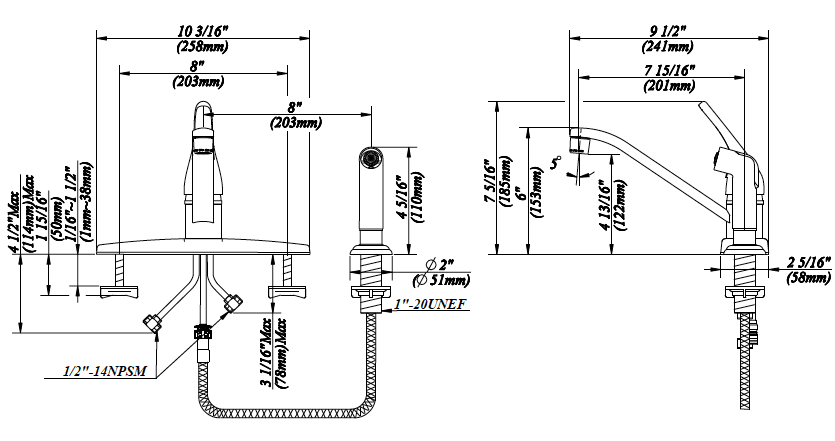

CL-140C Single Handle Kitchen Faucet
.jpg)
- With Matching Spray
- 4 Hole Installation
- Chrome

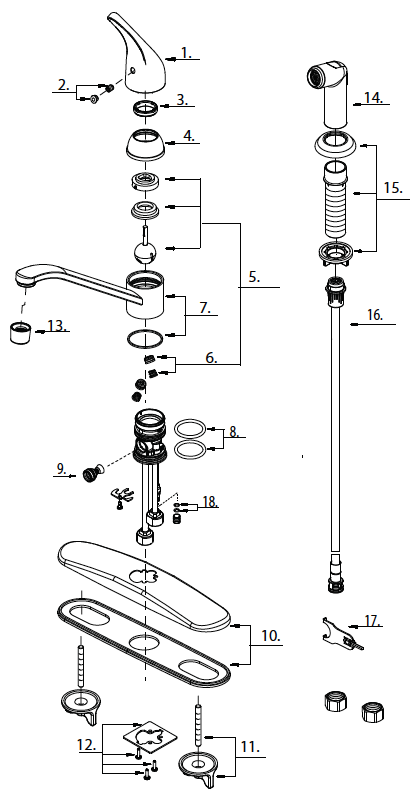

Single Handle Kitchen Faucet - Material Specifications
| No. | Name | Part No. |
|---|---|---|
| 1 | Metal Handle | A069121 |
| 2 | Index Button - Cold/ Hot | A66D567 |
| 3 | Locking Nut | A104001 |
| 4 | Trim Cap | A103022 |
| 5 | Ball Valve Assembly | A66D641N |
| 6 | Seat & Spring Set | A663002 |
| 7 | Spout Set | A66D589N |
| 8 | O-Ring Set (Φ1-1/4" ID * Φ1-1/2" OD) | A608220 |
| 9 | Spray Diverter w/ Vacuum Breaker | A501374N |
| 10 | Cover Plate & Putty Plate | A66F038-T |
| 11 | Mounting Hardware | A66G421 |
| 12 | Base Mounting Hardware | A66G416-T |
| 13 | Aerator | A500871N-51 |
| 14 | Side Spray | A503002N |
| 15 | Spray Holder Assembly (2-1/2" L) | A664250-P |
| 16 | Spray Hose | A512139N |
| 17 | Wrench | A031001NI |
| 18 | O-Ring Set | A668178N |
