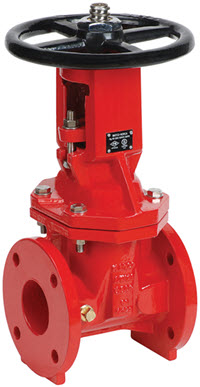

205U UL/FM Flanged Ductile Iron Gate Valve- OS&Y
205U UL/FM Flanged Ductile Iron Gate Valve- OS&Y
• Ductile Iron Flanged Gate Valve
• Resilient Wedge
• 300 PSI
• 14°-180°F Working Temperature
• Rising Stem (OS&Y)
• Stem is Pre-Grooved for Tamper Switch Mounting
• 4 Bosses w/1 Tapped and Plugged
• AWWA C515-20
• U.L. Listed / F.M. Approved
• Flanged Ends Conforms with ANSI B16.1 Class125
• Fusion Bonded Epoxy Coating - AWWA C550
• ANSI/NSF 61 & ANSI/NSF 372
• Sizes 2-1/2" - 12"
DIMENSIONS
| Part # | Size | L | H (Open) | H (Closed) | D |
|---|---|---|---|---|---|
| 205U09 | 2-1/2” | 7-1/2 | 16-5/8 | 13-3/4 | 7-1/4 |
| 205U10 | 3” | 8 | 18-7/8 | 15-3/4 | 10 |
| 205U11 | 4” | 9 | 21-5/8 | 17-3/4 | 10 |
| 205U13 | 6” | 10-1/2 | 29-1/8 | 23-1/4 | 12 |
| 205U14 | 8” | 11-1/2 | 36-5/8 | 28-3/4 | 14 |
| 205U15 | 10” | 13 | 44-1/2 | 34-3/4 | 17-1/2 |
| 205U16 | 12” | 14 | 52 | 40-1/6 | 17-1/2 |
Material Specifications
| No. | Part | Material | ||||
|---|---|---|---|---|---|---|
| 1 | Body | Ductile Iron A536 65-45-12 | ||||
| 2 | Wedge | Ductile Iron EPDM Encapsulated | ||||
| 3 | Wedge Nut | Stainless Steel AISI 304 | ||||
| 4 | Pin | Stainless Steel AISI 402 | ||||
| 5 | O-Ring | EPDM | ||||
| 6 | Gasket | EPDM | ||||
| 7 | Stem | Stainless Steel AISI 304 | ||||
| 8 | Bonnet | Ductile Iron A536 65-45-12 | ||||
| 9 | Packing | Graphite | ||||
| 10 | Gland | Ductile Iron A536 65-45-12 | ||||
| 11 | Yoke Nut | Ductile Iron A536 65-45-12 | ||||
| 12 | Washer | Brass | ||||
| 13 | Handwheel | Ductile Iron A536 65-45-12 | ||||
| 14 | Handwheel Nut | Ductile Iron A536 65-45-12 | ||||
| 15 | Bolts | Stainless Steel A2-70 | ||||
| 16 | Nuts | Stainless Steel A4-70 | ||||
| 17 | Washers | Stainless Steel AISI 304 | ||||
| 18 | Bonnet Bolts | Carbon Steel Gr8.8 Zinc Plated | ||||
| 19 | Plug | Malleable Iron | ||||
