205UCNY UL/FM Flanged Ductile Iron Gate Valve - OS&Y - Chicago / NYC Body Spec
205UCNY UL/FM Flanged Ductile Iron Gate Valve - OS&Y - Chicago / NYC Body Spec
• Ductile Iron Flanged Gate Valve
• Resilient Wedge
• 300 PSI
• Rising Stem (OS&Y)
• Less Tap & Plug
• AWWA C515-20
• U.L. Listed / F.M. Approved
• Flanged Ends Conforms with ANSI B16.1 Class125
• Fusion Bonded Epoxy Coating - AWWA C550
• Chicago / NYC Body Spec
• ANSI/NSF 61 & ANSI/NSF 372
• Sizes 2-1/2" - 12"

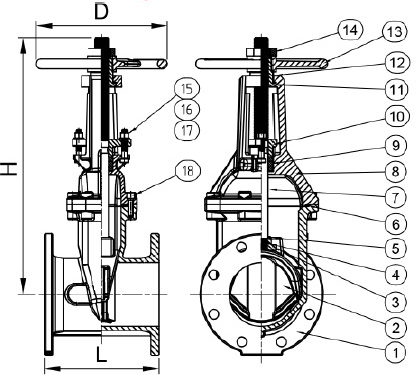

DIMENSIONS
| Part # | Size | L | H (Open) | H (Closed) | D |
|---|---|---|---|---|---|
| 205U09CNY | 2-1/2” | 7-1/2 | 16-5/8 | 13-3/4 | 7-1/4 |
| 205U10CNY | 3” | 8 | 18-7/8 | 15-3/4 | 10 |
| 205U11CNY | 4” | 9 | 21-5/8 | 17-3/4 | 10 |
| 205U13CNY | 6” | 10-1/2 | 29-1/8 | 23-1/4 | 12 |
| 205U14CNY | 8” | 11-1/2 | 36-5/8 | 28-3/4 | 14 |
| 205U15CNY | 10” | 13 | 44-1/2 | 34-3/4 | 17-1/2 |
| 205U16CNY | 12” | 14 | 52 | 40-1/6 | 17-1/2 |
MATERIAL SPECIFICATIONS
| No. | Part | Material |
|---|---|---|
| 1 | Body |
Ductile Iron ASTM A536 65-45-12 |
| 2 | Wedge |
Ductile Iron EPDM Encapsulated |
| 3 | Wedge Nut | Stainless Steel AISI 304 |
| 4 | Pin | Stainless Steel AISI 420 |
| 5 | O-ring | EPDM |
| 6 | Gasket | EPDM |
| 7 | Stem | Stainless Steel AISI 304 |
| 8 | Bonnet |
Ductile Iron ASTM A536 65-45-12 |
| 9 | Packing | Graphite |
| 10 | Gland |
Ductile Iron ASTM A536 65-45-12 |
| 11 | Yoke Nut | Bronze ASTM C95200 |
| 12 | Washer | Brass |
| 13 | Handwheel |
Ductile Iron ASTM A536 65-45-12 |
| 14 | Handwheel Nut |
Ductile Iron ASTM A536 65-45-12 |
| 15 | Bolts | Stainless Steel A2-70 |
| 16 | Nuts | Stainless Steel A4-70 |
| 17 | Washers | Stainless Steel AISI 304 |
| 18 | Bonnet Bolts | Carbon Steel Gr8.8 Zinc Plated |
