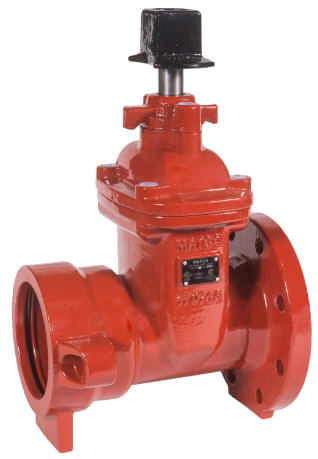

225FP AWWA C515 Ductile Iron Flanged x Push-On (C900 / DI Pipe) Valve
225FP AWWA C515 Ductile Iron Flanged x Push-On (C900 / DI Pipe) Valve
• Ductile Iron Gate Valve
• Flanged x Push-On (C900/DI Pipe)
• Resilient Wedge
• Non Rising Stem
• 300 PSI
• Temp Range of 32°F - 180°F
• AWWA C515-20
• AWWA C550 Epoxy
• UL Listed / FM Approved
• NSF-61 / NSF-372 verified by UL Water Quality
• Sizes 4”- 12”
Dimensions
| Part # | Size | L | H | D | A |
|---|---|---|---|---|---|
| 225FP11 | 4” | 11.5 | 16 | 10.0 | 7.5 |
| 225FP13 | 6” | 12.5 | 19 | 12.0 | 8.5 |
| 225FP14 | 8” | 14.5 | 23 | 14.0 | 10.0 |
| 225FP15 | 10” | 15.5 | 26 | 17.5 | 11.0 |
| 225FP16 | 12” | 16.5 | 31 | 17.5 | 11.5 |
Material Specifications
| No. | Part | Material | ASTM Spec. |
|---|---|---|---|
| 1 | Body | Ductile Iron | A536-65-45-12 |
| 2 | Wedge | Ductile Iron EPDM Encapsulated | A536-65-45-12 |
| 3 | Stem Nut | Bronze | ASTM C95200 |
| 4 | Stem | Stainless Steel | ANSI 304 |
| 5 | Gasket | Rubber | EPDM |
| 6 | Bolt | Stainless Steel | SS304 |
| 7 | Bonnet | Ductile Iron | A536-65-45-12 |
| 8 | O-Ring | Rubber | NBR |
| 9 | Thrust Collar | Bronze | ASTM C95200 |
| 10 | O-Ring | Rubber | NBR |
| 11 | Gland | Ductile Iron | A536-65-45-12 |
| 12 | O-Rings | Rubber | NBR |
| 13 | Dust Ring | Rubber | NBR |
| 14 | Operating Nut (Optional) | Ductile Iron | A536-65-45-12 |
| 15 | Bolts | Stainless Steel | SS304 |
| 16 | Washer | Stainless Steel | SS304 |
| 17 | Handwheel (Optional) | Ductile Iron | A536-65-45-12 |
| 18 | Bolts | Stainless Steel | SS304 |
