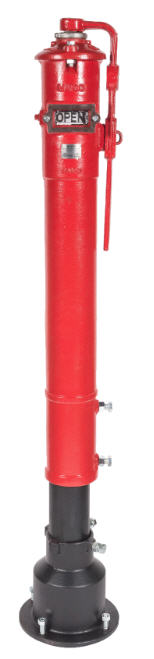

225IPAB & 225IPC Indicator Post
225IPAB & 225IPC Indicator Post
• Indicates if the valve is in the OPEN or SHUT position.
• Provides a means to operate a buried or otherwise inaccessible valve.
• The wrench handle fits over a “U” bracket on the barrel and may be fixed to the barrel with a padlock (provided by others) for security.
• Ease of Installation. Telescoping stem can be adjusted without field cutting
• OPEN and SHUT signs are easily adjusted by removing the post head.
• Telescoping Design allows for easy adjustment to final grade
• For use with gate valve size 4"-12".
• UL Listed and FM Approved.
Field Adjustment
| Order Length | Min | Max |
|---|---|---|
| A | 18.00 | 39.50 |
| B | 36.00 | 60.50 |
| C | 57.00 | 81.50 |

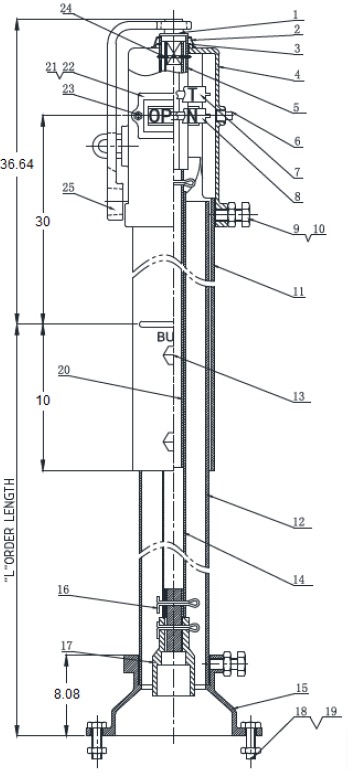

Material Specifications
| No. | Part | Material | ASTM Spec. |
|---|---|---|---|
| 1 | Operating Nut | Ductile Iron | ASTM A536 64-45-12 |
| 2 | Weather Cap | Polyethylene | |
| 3 | Retaining Ring | Stainless Steel | ANSI 302 |
| 4 | Post Head | Cast Iron | ASTM A126 CLB |
| 5 | Threaded Sleeve | Stainless Steel | ANSI 304 |
| 6 | Pipe Plug | Carbon Steel | |
| 7 | “SHUT” Target | Cast AL | |
| 8 | “OPEN” Target | Cast AL | |
| 9 | Bolt | Carbon Steel / Zinc Plated | ASTM A307B |
| 10 | Nut | Carbon Steel / Zinc Plated | ASTM A307B |
| 11 | Upper Barrel | Carbon Steel | ASTM A53 Gr. B |
| 12 | Lower Barrel | Carbon Steel | ASTM A53 Gr. B |
| 13 | Bolt | Carbon Steel / Zinc Plated | ASTM A307B |
| 14 | Lower Stem | Carbon Steel | ASTM A513 |
| 15 | Bell | Cast Iron | ASTM A126 CLB |
| 16 | Cotter Pin | Stainless Steel | ANSI 304 |
| 17 | Coupling | Ductile Iron | ASTM A536 64-45-12 |
| 18 | Bolt | Carbon Steel / Zinc Plated | ASTM A307B |
| 19 | Nut | Carbon Steel / Zinc Plated | ASTM A307B |
| 20 | Upper Stem | Carbon Steel | ASTM A513 |
| 21 | Window | Molded Plastic | |
| 22 | Gasket | PTFE | |
| 23 | Bolt | Carbon Steel / Zinc Plated | ASTM A307B |
| 24 | Spring Pin | Stainless Steel | ANSI 304 |
| 25 | Wrench | Ductile Iron | ASTM A536 64-45-12 |
