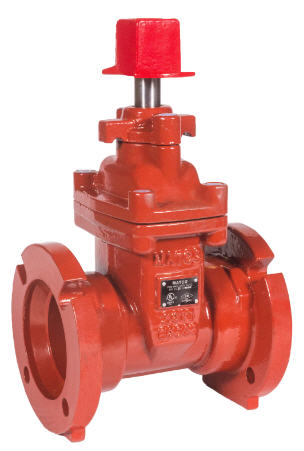

225MR AWWA C515 Ductile Iron Mechanical Joint Valve - Open Right
225MR AWWA C515 Ductile Iron Mechanical Joint Valve - Open Right
• Mechanical Joint Ductile Iron Gate Valve
• Open Right
• Resilient Wedge
• Non Rising Stem
• 300 PSI 3”- 12”
• Temp Range of 32°F - 180°F
• AWWA C515-20
• AWWA C550 Epoxy
• UL Listed / FM Approved
• NSF-61 / NSF-372 verified by UL Water Quality
• Can Be Fitted With Post Indicator Plate (3"-12")
• Sizes 3”- 12”
Dimensions
| Part # | Size | L | D2 | D1 | D3 | G | H | D0 | D1 | H1 | Bolt Circle | Qty.*Dia Bolt Hole |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 225M10R | 3” | 9.50 | 7.6 | 4.9 | 4.1 | 0.59 | 11.0 | 10 | - | 11.6 | 6.25 | 4*0.75 |
| 225M11R | 4” | 10.00 | 9.1 | 6.0 | 4.9 | 0.60 | 11.8 | 10 | 12 | 13.8 | 7.50 | 4*0.88 |
| 225M13R | 6” | 11.50 | 11.1 | 8.1 | 7.1 | 0.63 | 16.4 | 12 | 12 | 18.0 | 9.50 | 6*0.88 |
| 225M14R | 8” | 12.50 | 13.3 | 10.3 | 9.2 | 0.66 | 20.7 | 14 | 12 | 21.5 | 11.75 | 6*0.88 |
| 225M15R | 10” | 14.75 | 15.6 | 12.3 | 11.2 | 0.70 | 24.5 | 16 | 12 | 25.5 | 14.00 | 8*0.88 |
| 225M16R | 12” | 15.00 | 17.9 | 14.4 | 13.3 | 0.73 | 28.0 | 16 | 12 | 28.8 | 16.25 | 8*0.88 |
Material Specifications
| No. | Part | Material | ASTM Spec. |
|---|---|---|---|
| 1 | Body | Ductile Iron | A536-65-45-12 |
| 2 | Wedge | Ductile Iron EPDM Encapsulated | A536-65-45-12 |
| 3 | Stem Nut | Bronze | ASTM C95200 |
| 4 | Stem | Stainless Steel | ANSI 304 |
| 5 | Gasket | Rubber | EPDM |
| 6 | Bolt | Stainless Steel | SS304 |
| 7 | Bonnet | Ductile Iron | A536-65-45-12 |
| 8 | O-Ring | Rubber | NBR |
| 9 | Thrust Collar | Bronze | ASTM C95200 |
| 10 | O-Ring | Rubber | NBR |
| 11 | Gland | Ductile Iron | A536-65-45-12 |
| 12 | O-Rings | Rubber | NBR |
| 13 | Dust Ring | Rubber | NBR |
| 14 | Operating Nut (Optional) | Ductile Iron | A536-65-45-12 |
| 15 | Bolts | Stainless Steel | SS304 |
| 16 | Washer | Stainless Steel | SS304 |
| 17 | Handwheel (Optional) | Ductile Iron | A536-65-45-12 |
| 18 | Bolts | Stainless Steel | SS304 |
