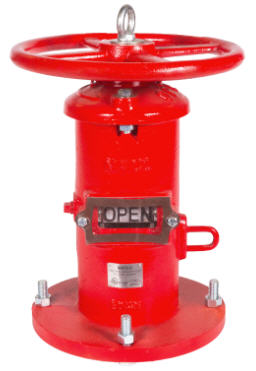

225WMIP Indicator Post - Wall Mount
225WMIP Indicator Post - Wall Mount
• UL Listed / FM Approved
• Wall Mount

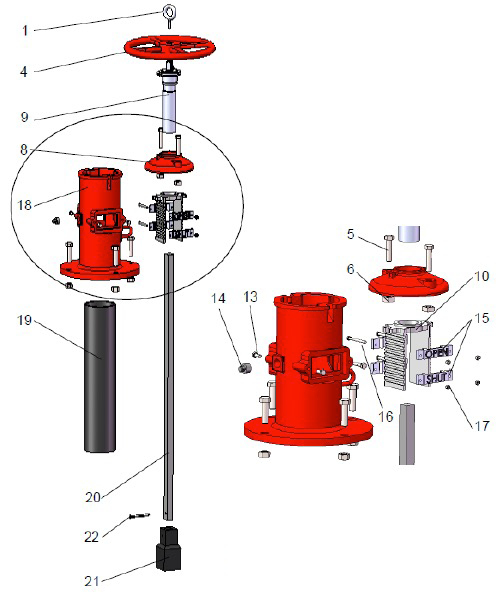

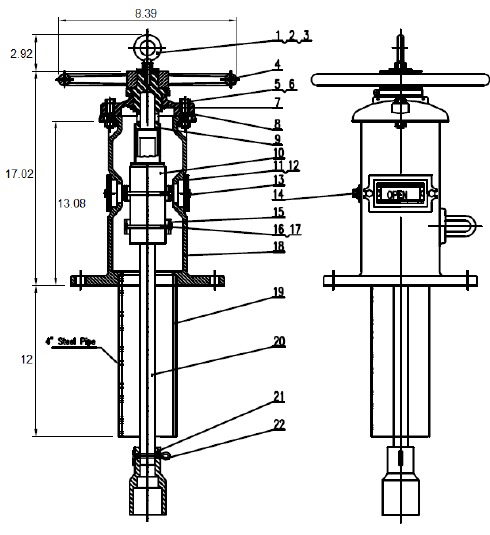

Material Specifications
| No. | Part | Material | ASTM Spec. |
|---|---|---|---|
| 1 | Eye Bolt | Carbon Steel | ASTM A307B |
| 2 | Hex Nut | Carbon Steel | ASTM A307B |
| 3 | Washer | Carbon Steel | ASTM A307B |
| 4 | Handwheel | Ductile Iron | ASTM A536 64-45-12 |
| 5 | Hex Bolt | Carbon Steel | ASTM A307B |
| 6 | Hex Nut | Carbon Steel | ASTM A307B |
| 7 | Snap Ring | Stainless Steel | AISI 1066 |
| 8 | Cover | Cast Iron | ASTM A126 Class B |
| 9 | Operating Nut | Stainless Steel | AISI 304 |
| 10 | Target Nut | Stainless Steel | AISI 304 |
| 11 | Window Glass | Plexiglass | ASTM A536 64-45-12 |
| 12 | Gasket | Rubber | PTFE |
| 13 | Hex Bolt | Carbon Steel | ASTM A307B |
| 14 | Plug | Malleable Iron | ASTM A307B |
| 15 | Target | Cast Aluminum | - |
| 16 | Hex Bolt | Carbon Steel | ASTM A307B |
| 17 | Hex Nut | Carbon Steel | ASTM A307B |
| 18 | Body | Cast Iron | ASTM A126 Class B |
| 19 | Steel Pipe | Carbon Steel | ASTM A307B |
| 20 | Stem | Carbon Steel | ASTM A307B |
| 21 | Crane Coupling | Ductile Iron | ASTM A536 64-45-12 |
| 22 | Cotter Pin | Stainless Steel | AISI 304 |
