58LGFF Gas Ball Valve- CSA Certified, Two Piece, Flare x Flare
Downloads:
58LGFF Gas Ball Valve- CSA Certified, Two Piece, Flare x Flare
• Gas Ball Valve
• 1/2 PSIG and 5 G
• CSA & UL Approved
• Lever Handle
• Flare x Flare 3/8" OD or 1/2" OD

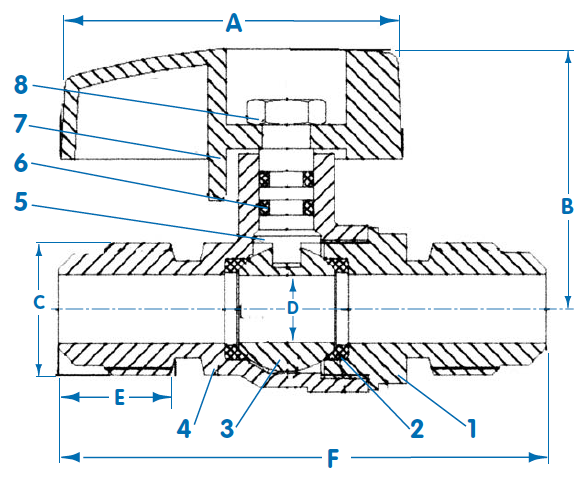

58LGFF Gas Ball Valve - CSA Certified, Two Piece, Flare x Flare - Material Specifications
| No. | Part | Material |
|---|---|---|
| 1 | Adapter | Forged Brass |
| 2 | Seats | Virgin PTFE |
| 3 | Ball | Chrome Plated Brass |
| 4 | Body | Forged Brass |
| 5 | Stem | Machined Brass |
| 6 | O Ring | NBR |
| 7 | Handle | Aluminum Alloy |
| 8 | Handle Nut | Copper Plated/ Carbon Steel |
Dimensions
| Part # | Size | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| 58LGFF2 | 3/8" | 1.97 | 1.50 | 5/8 - 18 | .30 | .53 | 2.54 |
| 58LGFF3 | 1/2" | 1.97 | 1.50 | 3/4 - 16 | .38 | .65 | 2.82 |
