26-1017LF Lead Free 1/4 Turn Supply Valve 5/8 OD Compression x 1/4 OD Compression
Downloads:
26-1017LF Lead Free 1/4 Turn Supply Valve 5/8 OD Compression x 1/4 OD Compression
• Chrome Plated Lead Free Brass
• cUPC, NSF/ANSI 61 Approved
• 125 PSI
• Angle
• 1/4 Turn
• Oval Handle
• Temp. Rating: 32°F - 160°F
• 5/8” OD Compression x 1/4” OD Compression

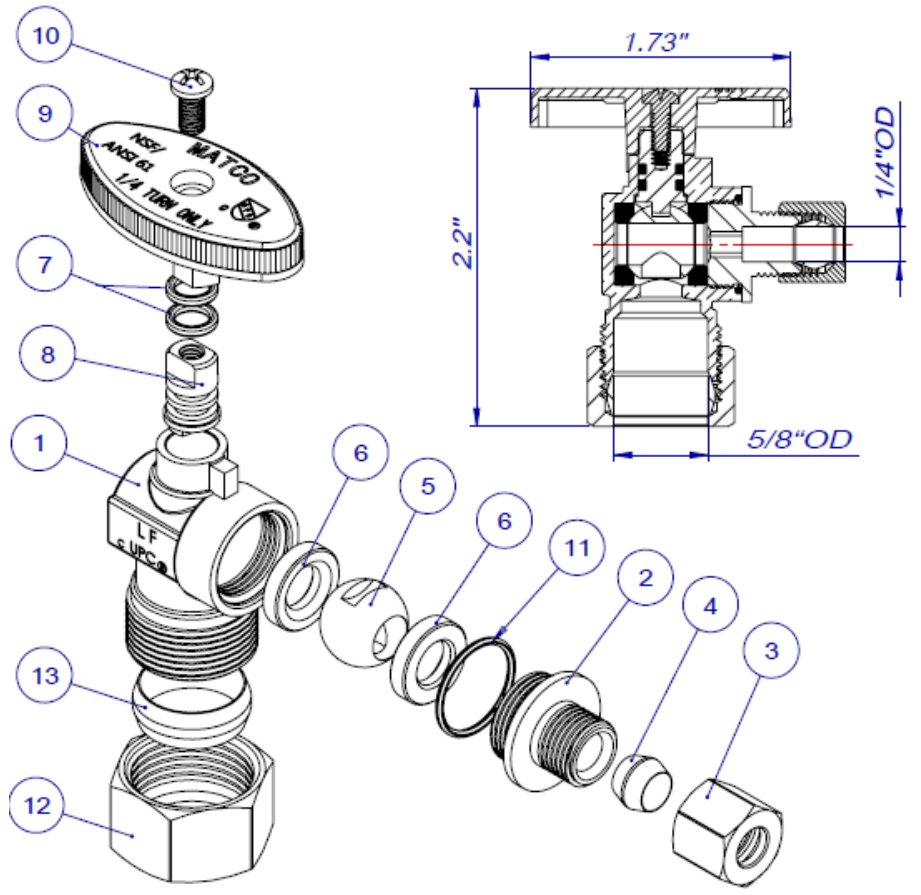

Material Specifications
| No. | Part | Material | |||
|---|---|---|---|---|---|
| 1 | Body | LF Brass | |||
| 2 | Cap | LF Brass | |||
| 3 | Hex Cap | Brass | |||
| 4 | Sleeve | LF Brass | |||
| 5 | Ball | LF Brass | |||
| 6 | Ring | PFTE | |||
| 7 | O-Ring | NBR | |||
| 8 | Stem | Brass | |||
| 9 | Handle | Zinc Alloy | |||
| 10 | Screw | Steel | |||
| 11 | O-Ring | NBR | |||
| 12 | Hex Cap | Brass | |||
| 13 | Sleeve | LF Brass | |||
