26-2001LF & 26-2001BLF 1/4 Turn Oval Handle DUAL Angle Supply Valve 5/8 OD Compression x 3/8 OD Compression
Downloads:
26-2001LF & 26-2001BLF 1/4 Turn Oval Handle DUAL Angle Supply Valve 5/8 OD Compression x 3/8 OD Compression
• Chrome Plated Lead Free Brass
• NSF & UPC Approved
• 125 PSI
• Compression Dual Outlet
• Angle
• 1/4 Turn
• Temp. Rating: 32°F - 160°F
• 5/8 " OD Compression x 3/8 OD Compression
• NSF & UPC Approved
• 125 PSI
• Compression Dual Outlet
• Angle
• 1/4 Turn
• Temp. Rating: 32°F - 160°F
• 5/8 " OD Compression x 3/8 OD Compression
26-2001BLF
• Same as Above - Unplated
• Same as Above - Unplated

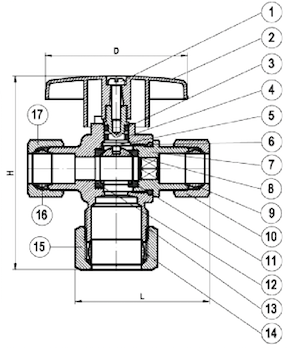

Material Specifications
| No. | Part | Material | ||||
|---|---|---|---|---|---|---|
| 1 | Bolt | Rod Carbon Steel SAE 1006 | ||||
| 2 | Handle | Zinc Alloy | ||||
| 3 | O-Ring | EPDM SN-719F | ||||
| 4 | O-Ring | EPDM SN-719F | ||||
| 5 | Stem | Brass C89550 | ||||
| 6 | O-Ring | EPDM SN-719F | ||||
| 7 | Outlet Nut | Brass C89550 | ||||
| 8 | Ball | Brass C89550 | ||||
| 9 | Sleeve | Brass C89550 | ||||
| 10 | Packing Nut | Brass B124 C37700 | ||||
| 11 | Packing | Plastic POM-M90 | ||||
| 12 | Packing | Plastic POM-M90 | ||||
| 13 | Body | Brass C89550 | ||||
| 14 | Sleeve | Brass C89550 | ||||
| 15 | Packing Nut | Brass B124 C37700 | ||||
| 16 | Sleeve | Brass C89550 | ||||
| 17 | Packing Nut | Brass B124 C37700 | ||||
Dimensions
| Part No. | H | L | L1 | D | ||
|---|---|---|---|---|---|---|
| 26-2001LF | 2.43 | 1.67 | 0.98 | 1.79 | ||
