120F Cast Iron Flanged Check Valve
120F Cast Iron Flanged Check Valve
• Check Valve-Flanged Ends
• 200 CWP
• C.I. Body w/ 1 Boss
• Resilient Seat
• Epoxy Coating
• Bolted Cover
• Conforms to MSS-SP-71
• Flanged Ends Conform with ANSI B16.1
• Sizes 2" - 12"
Material Specifications
| No. | Part | Material | ASTM Designation |
|---|---|---|---|
| 001 | Body | Cast Iron | A 126 Class B |
| 003 | Disc | Cast Iron | A 126 Class B |
| 014 | Cover | Cast Iron | A 126 Class B |
| 024 | Seat Holder |
2”-6” Cast Iron 8”-12” Ductile Iron |
A 126 Class B A 536 Gr. 65-45- 12 |
| 061 | Body Seat Ring | Stainless Steel | A 276 Type 304 |
| 062 | Disc Seat Ring | Rubber (Buna-N) | D 2000 BK 707 |
| 159 | Hing Pin | Stainless Steel | A 276 Type 304 |
| 166 | Plug | Malleable Iron | A 47 |
| 194 | Cover Bolt & Nut | Zinc Coated Steel | A 307 Grade B |
| 199 | Seat Holder Bolt | Stainless Steel | A 276 Type 304 |
| 324 | Cover Gasket | Rubber (Buna-N) | D 2000 BK 707 |

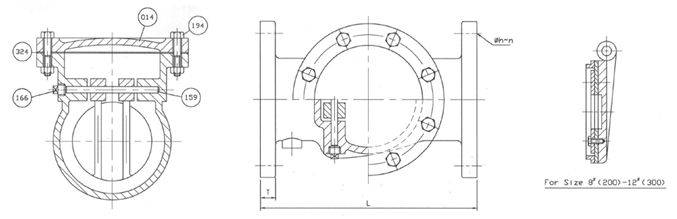

Dimensions
| Part # | Size | L | ØD | ØC | Øh | N | T | ØA | ØS | H | H1 |
Approx. Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 120F08 | 2” | 8 | 6 | 4-3/4 | 3/4 | 4 | 5/8 | 5-5/16 | 1/4 | 4-3/16 | 3 | 19.8 |
| 120F09 | 2-1/2” | 8-1/2 | 7 | 5-1/2 | 3/4 | 4 | 11/16 | 6-1/2 | 5/16 | 4-15/16 | 3-1/2 | 30.8 |
| 120F10 | 3” | 9-1/2 | 7-1/2 | 6 | 3/4 | 4 | 3/4 | 7-1/8 | 5/16 | 5-15/16 | 3-3/4 | 41.8 |
| 120F11 | 4” | 11-1/2 | 9 | 7-1/2 | 3/4 | 8 | 15/16 | 8-1/2 | 3/8 | 6-9/16 | 4-1/2 | 68.3 |
| 120F12 | 5” | 13 | 10 | 8-1/2 | 7/8 | 8 | 15/16 | 9-11/16 | 1/2 | 7-5/16 | 5 | 79.3 |
| 120F13 | 6” | 14 | 11 | 9-1/2 | 7/8 | 8 | 1 | 11-7/16 | 1/2 | 7-11/16 | 5-1/2 | 114.6 |
| 120F14 | 8” | 19-1/2 | 13-1/2 | 11-3/4 | 7/8 | 8 | 1-1/8 | 14-3/8 | 3/4 | 9-1/4 | 6-3/4 | 231.4 |
| 120F15 | 10” | 24-1/2 | 16 | 14-1/4 | 1 | 12 | 1-3/16 | 17 | 7/8 | 10-11/16 | 8 | 357 |
| 120F16 | 12” | 27-1/2 | 19 | 17 | 1 | 12 | 1-1/4 | 19-7/8 | 7/8 | 12-5/8 | 9-1/2 | 498.1 |
