140S Cast Iron Threaded Y Strainer
140S Cast Iron Threaded Y Strainer
• Y Strainer-Threaded Ends
• Class 250 / 250 WSP
• Cast Iron Body
• Sizes 1/2" - 2" 20 Mesh S.S. Screen
• Sizes 2-1/2" - 3" 3/64" Perforated S.S. Screen
STANDARD SCREENS
| Size | Opening | Std. Mesh / Perf |
|---|---|---|
| 1/2" - 2" | 0.032" | 20 Mesh |
| 2-1/2" - 3" | 0.045" | 3/64" Perf |
Material Specifications
| No. | Part | Material | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Body | Cast Iron | |||||||
| 2 | Cover | Cast Iron | |||||||
| 3 | Screen | Stainess Steel - ASTM A126 WCB | |||||||
| 4 | Gasket | PTFE | |||||||
| 5 | Plug | Carbon Steel - ASTM A276 304 | |||||||

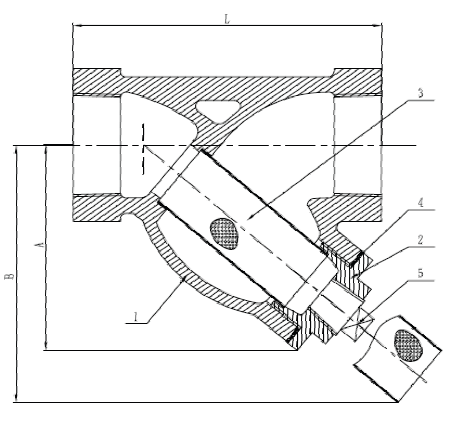

Dimensions
| Part # | Size | L | A | B | Blow-Off N.P.T | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 140S03 | 1/2” | 3.19 | 1.97 | 3.94 | 1/4” | |||||||
| 140S04 | 3/4” | 3.74 | 2.68 | 5.40 | 3/8” | |||||||
| 140S05 | 1” | 4.02 | 2.99 | 5.99 | 3/8” | |||||||
| 140S06 | 1-1/4” | 5.08 | 3.43 | 6.90 | 3/4” | |||||||
| 140S07 | 1-1/2” | 5.75 | 3.78 | 7.56 | 3/4” | |||||||
| 140S08 | 2” | 7.01 | 4.33 | 8.71 | 1” | |||||||
| 140S09 | 2-1/2” | 9.26 | 6.11 | 12.21 | 1” | |||||||
| 140S10 | 3” | 10.01 | 7.41 | 14.81 | 1” | |||||||
