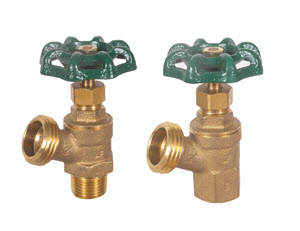

205FLF Lead Free Full Flow Boiler Drain- Angle Spout
205FLF Lead Free Full Flow Boiler Drain- Angle Spout
• Lead Free Brass
• 125 WOG
• Boiler Drain-Full Flow with Angled Spout
• Stuffing Box
• 1/2" MIP x 1/2" Solder
• 3/4" MIP x 1/2" FIP
• 1/2" and 3/4" FIP

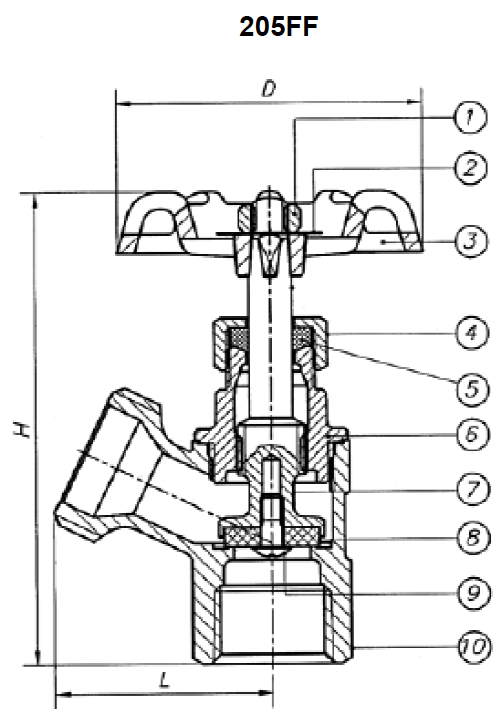

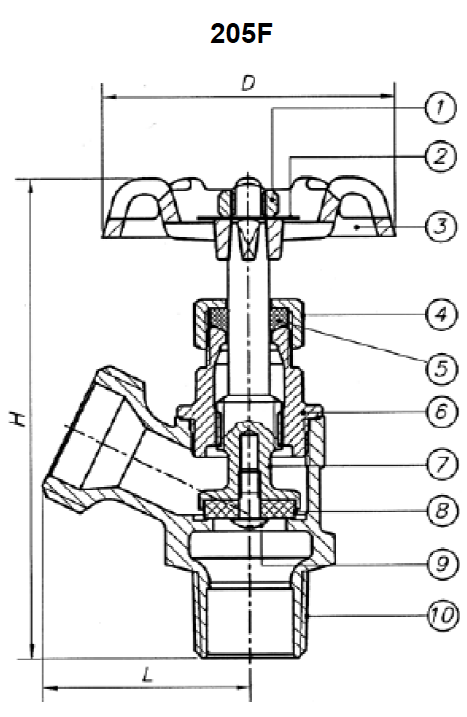

205FLF Lead Free Full Flow Boiler Drain - Angle Spout - Material Specifications
| No. | Parts | Material | |||
|---|---|---|---|---|---|
| 1 | Wheel Nut | Hot Rolled SAE 1010R | |||
| 2 | Name Plate | Aluminum A1100 | |||
| 3 | Handle Wheel | Cast Iron | |||
| 4 | Packing Nut | Brass C89550 | |||
| 5 | Gland Packing | PTFE | |||
| 6 | Bonnet | Brass C89550 | |||
| 7 | Stem | Brass C89550 | |||
| 8 | Seat Packing | BUNA | |||
| 9 | Seat Screw | Brass B19 C26000 | |||
| 10 | Body | Brass C89550 | |||
Dimensions
| Part | Size | L | H | D | |||
|---|---|---|---|---|---|---|---|
| 205F03LF | 1/2" MIP x 1/2" Solder | 1.46 | 3.59 | 2.08 | |||
| 205F04LF | 3/4" MIP x 1/2" FIP | 1.46 | 3.59 | 2.08 | |||
| 205FF3LF | 1/2" FIP | 1.46 | 3.35 | 2.08 | |||
| 205FF4LF | 3/4" FIP | 1.46 | 3.35 | 2.08 | |||
