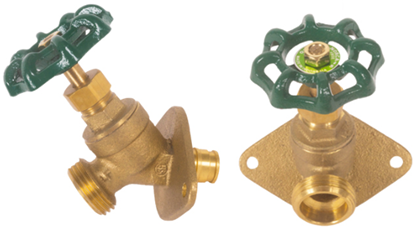

206PXCEFLF Lead Free Cold Expansion Pex Large Flange Pex Sillcock- Brass Body
206PXCEFLF Lead Free Cold Expansion Pex Large Flange Pex Sillcock- Brass Body
• Lead Free Brass
• Large Flange Sillcock
• 125 WOG
• Max Temperature 160°F
• Hose X Cold Expansion F1960 Pex
• Size 1/2”

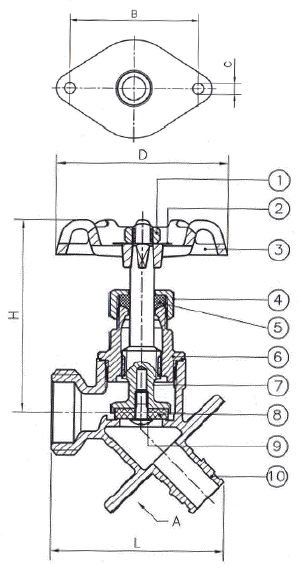

DIMENSIONS
| Part # | Size | B | C | D | H | L |
|---|---|---|---|---|---|---|
| 206PXCE03FLF |
1/2” Cold Expansion F1960 Pex X 3/4” MHT |
2.58 | 0.22 | 2.09 | 2.40 | 2.13 |
MATERIAL SPECIFICATIONS
| No. | Part | Material |
|---|---|---|
| 1 | Nut | Hot Rolled SAE 1010R |
| 2 | Name Plate | Aluminum A1100 |
| 3 | Handle | Cast Iron JIS ZZ2202 |
| 4 | Packing Nut | Brass C37700 |
| 5 | Packing | PTFE M-392 |
| 6 | Bonnet | Cast Brass C46400 |
| 7 | Stem | Cast Brass C46400 |
| 8 | Seat Packing | Rubber (NBR) SN 819F |
| 9 | Screw | Forged Brass C26000 |
| 10 | Body | Cast Brass C46400 |
