26-1004PCLF Lead Free 1/4 Turn Straight Supply Valve 1/2 Push X 3/8 OD Compression
26-1004PCLF Lead Free 1/4 Turn Straight Supply Valve 1/2 Push X 3/8 OD Compression
• Chrome Plated Lead Free Brass
• 1/4 Turn
• One Piece Body
• cUPC, NSF/ANSI 61 Certified
• Compatible with Copper Tube, PEX, & CPVC
• 1/2” Push x 3/8” OD Compression
Push Connect Removal Tool Available
Part # 26-PCRT

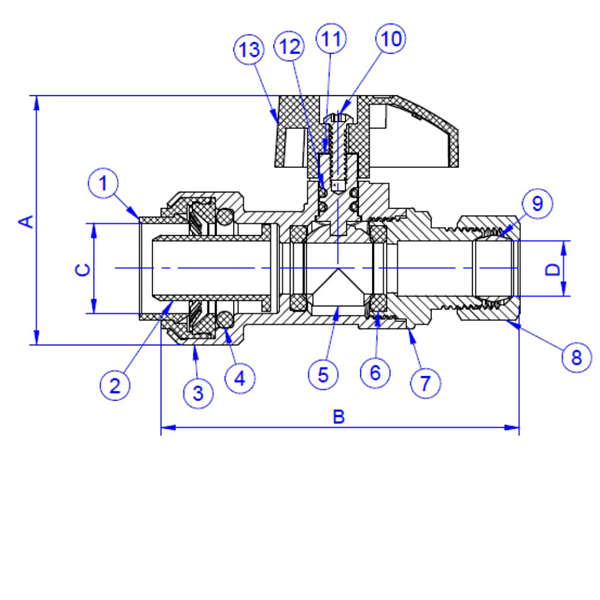

DIMENSIONS
| Size | A | B | C | D |
|---|---|---|---|---|
| 1/2" x 3/8" | 1.74 | 2.50 | 0.63 | 0.38 |
MATERIAL SPECIFICATIONS
| No. | Part | Material |
|---|---|---|
| 1 | Plastic Assembly | POM+SUS304 |
| 2 | Stiffener | PSU |
| 3 | Body | C46500 |
| 4 | O-Ring | EPDM |
| 5 | Ball | C46500 |
| 6 | Seat | PTFE |
| 7 | Adapter | C46500 |
| 8 | Sleeve Nut | C37700 |
| 9 | Sleeve | H62 |
| 10 | Handle Screw | AISI201 |
| 11 | Stem | C46500 |
| 12 | O-Ring | EPDM |
| 13 | Handle | Zamak5 |
