26-2003PCLF Lead Free 1/4 Turn Dual Angle Supply Valve 1/2 Push x 3/8 O.D. Comp x 3/8 O.D. Comp
26-2003PCLF Lead Free 1/4 Turn Dual Angle Supply Valve 1/2 Push x 3/8 O.D. Comp x 3/8 O.D. Comp
• Chrome Plated Lead Free Brass
• 1/4 Turn
• Dual Outlet
• One Piece Body
• cUPC, NSF/ANSI 61 Certified
• Compatible with Copper Tube, PEX, & CPVC
• 1/2” Push x 3/8” OD Compression x 3/8” OD Compression
Push Connect Removal Tool Available
Part # 26-PCRT

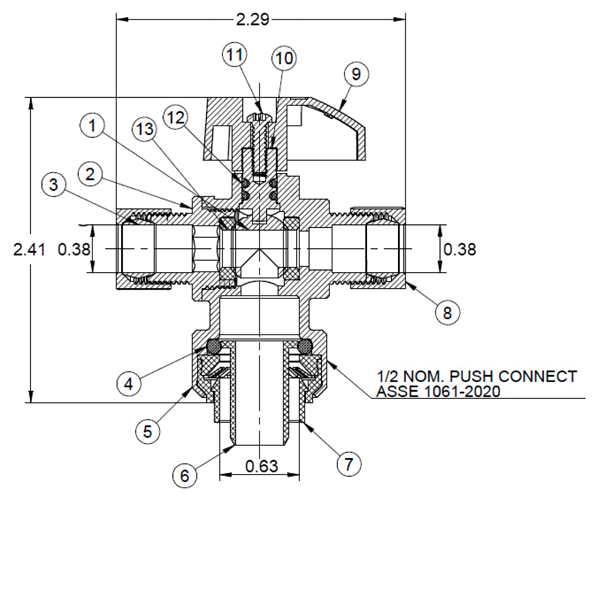

MATERIAL SPECIFICATIONS
| No. | Part | Material |
|---|---|---|
| 1 | Ball | C46500 |
| 2 | Adapter | C46500 |
| 3 | Sleeve | H62 |
| 4 | O-Ring | EPDM |
| 5 | Body | C46500 |
| 6 | Stiffener | PSU |
| 7 | Plastic Assembly | POM+SUS304 |
| 8 | Sleeve Nut | C37700 |
| 9 | Handle | Zamak5 |
| 10 | Stem | C46500 |
| 11 | Handle Screw | AISI201 |
| 12 | O-Ring | EPDM |
| 13 | Seat | PTFE |
