513LF Lead Free Bronze Gate Valve- Non Rising Stem
513LF Lead Free Bronze Gate Valve- Non Rising Stem
• Lead Free Bronze
• 200 WOG - 125 SWP
• Full Port
• Non-rising Stem
• NSF 61 & NSF 372 Certified
• Threaded Ends Conform to ANSI Standards B2.1
• Valves are Tested in Accordance w/ MSS-SP-80
• Sizes 3/4" - 2"
*2" Available with Bronze Wheel Handle, Cross Handle, and Curb Stop Handle

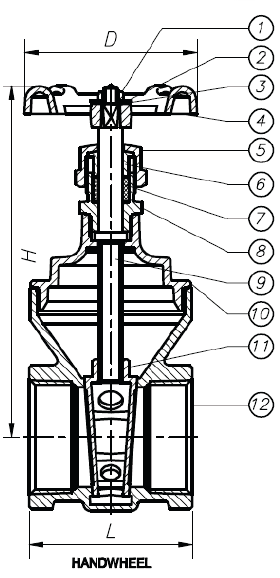

513LF Lead Free Bronze Gate Valve - Non Rising Stem - Material Specifications
| No. | Part | Material | |||||
|---|---|---|---|---|---|---|---|
| 1 | Wheel Nut | Hot Rolled SAE 1010R | |||||
| 2 | Name Plate | Aluminum | |||||
| 3 | Washer | Bronze B584 C84400 | |||||
| 4 | Hand Wheel | Bronze B584 C84400 | |||||
| 5 | Packing Nut | Bronze B584 C84400 | |||||
| 6 | Gland Ring | Brass B16 C36000 | |||||
| 7 | Gland Packing | Graphite | |||||
| 8 | Locknut | Bronze C89844 | |||||
| 9 | Stem | Bronze C89550 | |||||
| 10 | Bonnet | Bronze C89844 | |||||
| 11 | Disc | Bronze C89844 | |||||
| 12 | Body | Bronze C89844 | |||||

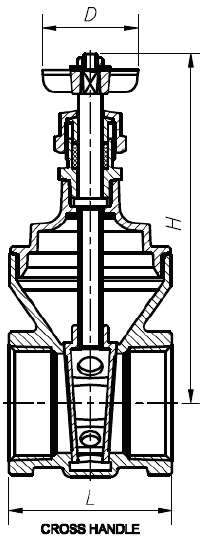

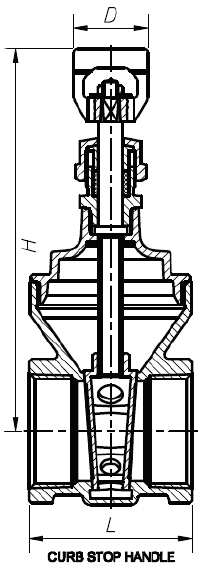

Dimensions
| Part # | Size | L | H | D | ||
|---|---|---|---|---|---|---|
| 513T04LF | 3/4” | 2.05 | 3.94 | 2.68 | ||
| 513T05LF | 1” | 2.40 | 4.73 | 3.11 | ||
| 513T06LF | 1-1/4” | 2.62 | 5.24 | 3.55 | ||
| 513T07LF | 1-1/2” | 2.90 | 6.50 | 3.86 | ||
| 513T08LF | 2” | 3.07 | 8.12 | 4.33 | ||
| 513T08CSLF | 2” | 3.07 | 8.04 | 2.40 | ||
| 513T08XLF | 2” | 3.07 | 8.63 | 1.79 | ||
