70SSTH Stainless Steel Threaded Y Strainer
70SSTH Stainless Steel Threaded Y Strainer
• W.P. 800WOG
• W.T. -4°F -392°F
• 316 Stainless Steel Body
• 20 Mesh Screen
• Investment Casting
• Thread Type: NPT
• Sizes 1/2” -2”

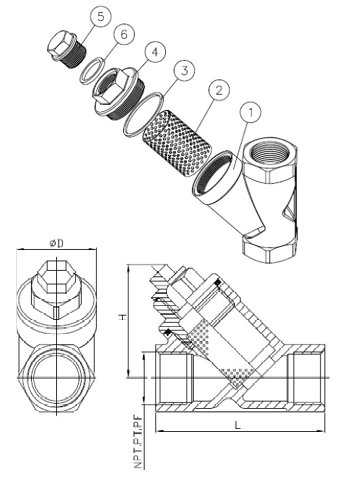

MATERIAL SPECIFICATIONS
| No. | Part | Material |
|---|---|---|
| 1 | Body | Stainless Steel 316 |
| 2 | Screen | Stainless Steel 304 |
| 3 | Gasket | PTFE |
| 4 | Cap | Stainless Steel 316 |
| 5 | Stopper | Stainless Steel 316 |
| 6 | Gasket | PTFE |
DIMENSIONS
| Part # | Size | L | H | D | Weight (lb) |
|---|---|---|---|---|---|
| 70SSTH03 | 1/2” | 2.56 | 1.77 | 1.22 | 0.53 |
| 70SSTH04 | 3/4” | 3.15 | 2.09 | 1.42 | 0.79 |
| 70SSTH05 | 1” | 3.55 | 2.68 | 1.77 | 1.52 |
| 70SSTH06 | 1-1/4” | 4.14 | 2.84 | 1.97 | 1.90 |
| 70SSTH07 | 1-1/2” | 4.73 | 3.15 | 2.32 | 2.98 |
| 70SSTH08 | 2” | 5.52 | 3.82 | 2.96 | 5.22 |
