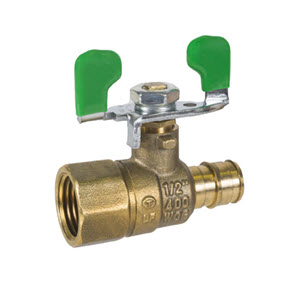

754PXCEFTLF Lead Free FNPT x Cold Expansion F1960 PEX Ball Valve With Tee Handle - Full Port
754PXCEFTLF Lead Free FNPT x Cold Expansion F1960 PEX Ball Valve With Tee Handle - Full Port
• Lead Free Brass
• FNPT x Cold Expansion PEX
• With Tee Handle
• Full Port
• 400 WOG
• NSF 14/61 Approved
• cUPC Approved
• Blow-Out Proof Stems
• ASTM F1960 (Cold Expansion Fitting Ends)
• FNPT Complies with ASME B1.20.1.
• Size 1/2” – 1”
DIMENSIONS
| Part # | Size | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| 754PXCEF03TLF | 1/2” | 0.35 | 2.23 | 0.53 | 0.39 | 1/2-14NPT | 2.05 | 1.69 |
| 754PXCEF04TLF | 3/4" | 0.53 | 2.36 | 0.55 | 0.53 | 3/4-14NPT | 2.05 | 1.77 |
| 754PXCEF02TLF | 1” | 0.71 | 2.92 | 0.67 | 0.71 | 1-11.5NPT | 2.52 | 2.05 |
MATERIAL SPECIFICATIONS
| No. | Part | Material |
|---|---|---|
| 1 | Hex-Nut | Q235 |
| 2 | Handle | Steel |
| 3 | Packing Gland | PTFE |
| 4 | Body | Brass C46500 |
| 5 | Ball | Brass C46500 |
| 6 | Seat | PTFE |
| 7 | Bonnet | Brass C46500 |
| 8 | O-Ring | EPDM |
| 9 | Stem | Brass C46500 |
