754PXLF Lead Free PEX Ball Valve - Full Port, Forged Brass
754PXLF Lead Free PEX Ball Valve - Full Port, Forged Brass
• Lead Free Forged Brass
• Full Port
• 600 WOG
• NSF Approved
• PTFE Seats
• PEX Ends
• Two Piece Body
• Blow Out Proof Stem

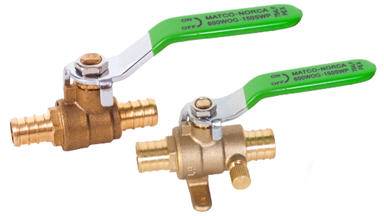

• With Waste Drain & Drop Ear Option
Available (1/2" - 1")
• Sizes 1/2" - 2"
754PXLF: 1/2" - 1" • 1-1/4" - 2" | 754PXDELF
Dimensions
| PART # | SIZE | D | d | H | L | L2 | |||
|---|---|---|---|---|---|---|---|---|---|

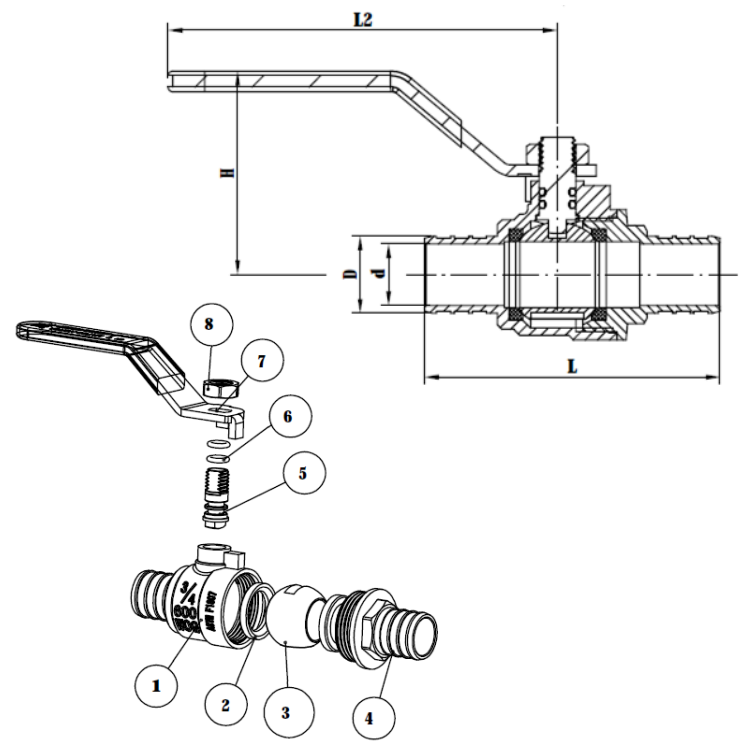

| 754PX03LF | 1/2” | 0.47 | 0.35 | 1.59 | 2.36 | 3.34 | |||
| 754PX04LF | 3/4” | 0.67 | 0.53 | 1.70 | 2.53 | 3.34 | |||
| 754PX05LF | 1” | 0.86 | 0.71 | 2.03 | 3.12 | 4.02 | |||
Material Specifications
| NO. | PART | MATERIAL | ||||
|---|---|---|---|---|---|---|
| 1 | Body | Brass | ||||
| 2 | Seat Ring | PTFE | ||||
| 3 | Ball | Brass | ||||
| 4 | Bonnet | Brass | ||||
| 5 | Stem | Brass | ||||
| 6 | O-Ring | NBR | ||||
| 7 | Handle | Iron | ||||
| 8 | Nut | Iron | ||||
Dimensions
| Part # | Size | DN | A | B | C | E | F |
|---|---|---|---|---|---|---|---|

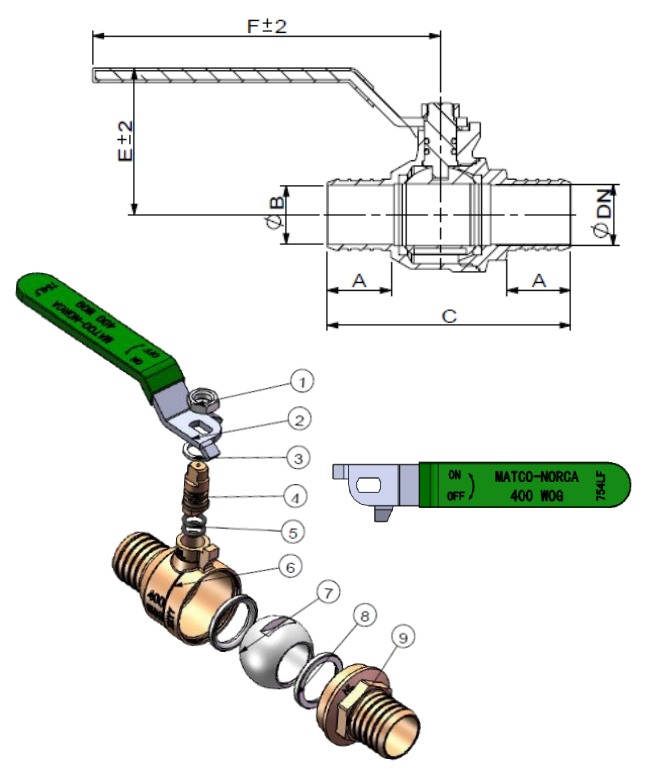

| 754PX06LF | 1-1/4” | 0.91 | 0.94 | 0.87 | 3.59 | 2.16 | 5.12 |
| 754PX07LF | 1-1/2” | 0.99 | 1.15 | 1.02 | 4.13 | 2.21 | 5.12 |
| 754PX08LF | 2” | 1.34 | 1.50 | 1.37 | 5.32 | 2.49 | 5.12 |
Material Specifications
| No. | Part | Material |
|---|---|---|
| 1 | Hex Nut | Steel |
| 2 | Handle | Steel |
| 3 | Washer | PTFE |
| 4 | Stem |
1-1/4” - 1-1/2” – Brass C46500 2” – Brass C36000 |
| 5 | O-Ring | EPDM |
| 6 | Body | Brass C46500 |
| 7 | Ball |
1-1/4” - 1-1/2” – C.P. Brass C46500 2” – Stainless Steel |
| 8 | Seat | PTFE |
| 9 | Bonnet | Brass C46500 |
Dimensions
| Part # | Size | D | d | H | L | L2 | M | W |
|---|---|---|---|---|---|---|---|---|

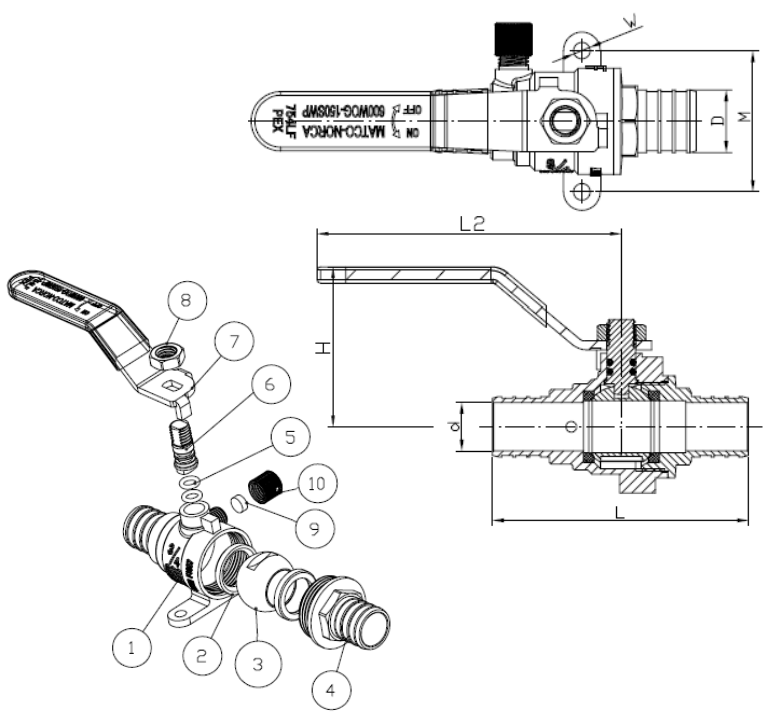

| 754PXDE03LF | 1/2” | 0.47 | 0.35 | 1.59 | 2.36 | 3.34 | 1.24 | 0.18 |
| 754PXDE04LF | 3/4” | 0.67 | 0.53 | 1.70 | 2.53 | 3.34 | 1.50 | 0.18 |
| 754PXDE05LF | 1” | 0.86 | 0.71 | 2.03 | 3.12 | 4.02 | 1.81 | 0.18 |
Material Specifications
| No. | Part | Material |
|---|---|---|
| 1 | Body | Brass |
| 2 | Seat Ring | PTFE |
| 3 | Ball | Brass |
| 4 | Bonnet | Brass |
| 5 | Stem | Brass |
| 6 | O-Ring | NBR |
| 7 | Handle | Iron |
| 8 | Nut | Iron |
| 9 | Gasket | NBR |
| 10 | Plug | NBR |
