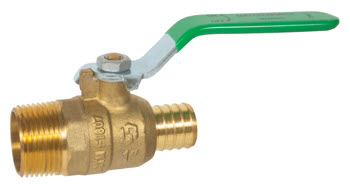

754PXMLF Lead Free MNPT x PEX Ball Valve - Full Port
754PXMLF Lead Free MNPT x PEX Ball Valve - Full Port
• Lead Free Brass
• 400 WOG
• Full Port
• NSF 14/61 & cUPC Approved
• Blow-Out Proof Stems
• Two Piece Body
• Pex End Conforms with ASTM F1807
• Sizes 1/2" - 1"
DIMENSIONS
| Part # | Size | L | H | A | L1 | L2 |
|---|---|---|---|---|---|---|
| 754PXM03LF | 1/2” | 2.96 | 1.48 | 1/2-14NPT | 0.54 | 2.52 |
| 754PXM04LF | 3/4” | 3.19 | 1.59 | 3/4-14NPT | 0.54 | 2.62 |
| 754PXM05LF | 1” | 4.18 | 1.98 | 1-11.5NPT | 0.68 | 3.23 |
MATERIAL SPECIFICATIONS
| No. | Part | Material |
|---|---|---|
| 1 | Hex Nut | Steel |
| 2 | Handle | Steel |
| 3 | Washer | PTFE |
| 4 | Stem | Brass C46500 |
| 5 | O-Ring | EPDM |
| 6 | Body | Brass C46500 |
| 7 | Ball | Brass C46500 |
| 8 | Seats | PTFE |
| 9 | Bonnet | Brass C46500 |
