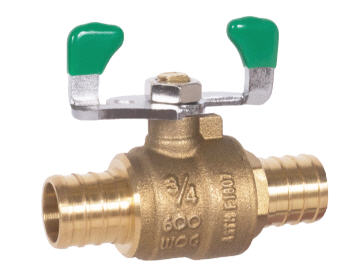

754PXTLF Lead Free PEX Ball Valve With Tee Handle - Full Port
754PXTLF Lead Free PEX Ball Valve With Tee Handle - Full Port
• Lead Free Brass
• 600 WOG
• Full Port
• NSF 372 Certified
• PEX Ends
• With Tee Handle
• Two Piece Body
• Double O Ring
• Sizes 1/2"-1"

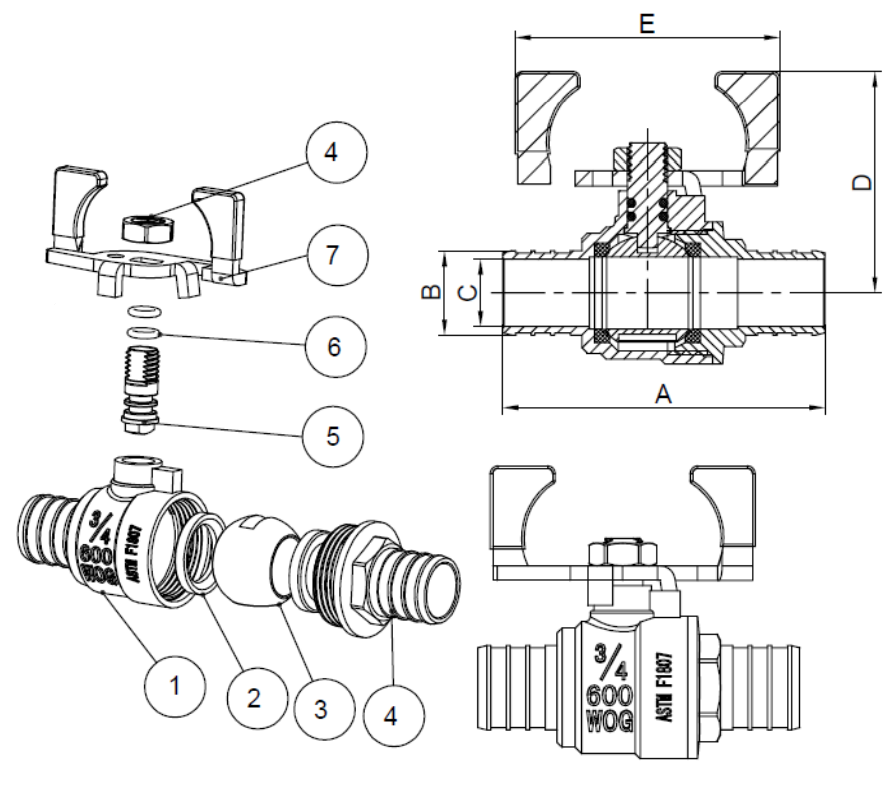

DIMENSIONS
| Part # | Size | A | B | C | D | E |
|---|---|---|---|---|---|---|
| 754PX03TLF | 1/2” | 2.36 | 0.47 | 0.35 | 1.59 | 2.08 |
| 754PX04TLF | 3/4" | 2.54 | 0.67 | 0.53 | 1.75 | 2.08 |
| 754PX05TLF | 1” | 3.12 | 0.86 | 0.72 | 2.01 | 2.56 |
MATERIAL SPECIFICATIONS
| No. | Part | Qty | Material |
|---|---|---|---|
| 1 | Body | 1 | Brass C46500 |
| 2 | Seat Ring | 2 | PTFE |
| 3 | Ball | 1 | Brass LF |
| 4 | Bonnet | 1 | Brass C46500 |
| 5 | Stem | 1 | Brass LF |
| 6 | O-Ring | 2 | NBR |
| 7 | Handle | 1 | Steel FE |
| 8 | Nut | 1 | Steel FE |
