AHV Angle Hot Water Radiator Supply Valve - Brass
AHV Angle Hot Water Radiator Supply Valve - Brass
• Hot Water Radiator Angle Valve
• Brass Body
• 60 PSI Non-Shock Hot Water
• 15 PSI Steam
• FIP x Male Union
• FIP x Male Union 1/2" - 1-1/4"
• Solder x Male Union 1/2" - 3/4"
• Sizes 1/2" - 1-1/4"

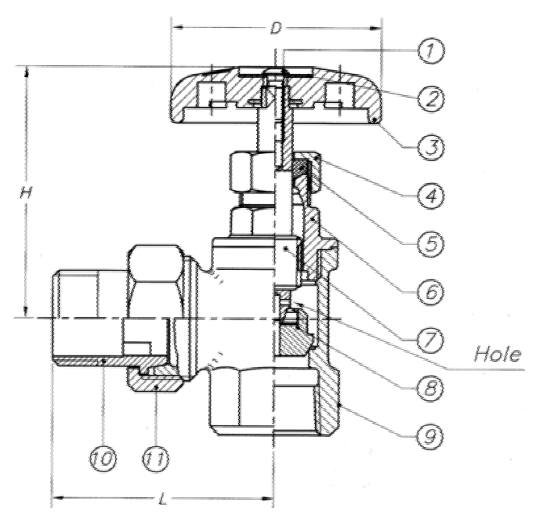

AHV Angle Hot Water Radiator Supply Valve - Material Specification
| No. | Part | Material | ||||
|---|---|---|---|---|---|---|
| 1 | Handle Bolt | Hot Rolled SAE 1010R | ||||
| 2 | Name Plate | Aluminum A1100 | ||||
| 3 | Handwheel | Phenolic | ||||
| 4 | Packing Nut | Brass B16 C36000 | ||||
| 5 | Gland Packing | PTFE | ||||
| 6 | Bonnet | Brass B584 C85710 | ||||
| 7 | Stem | Brass B584 C85710 | ||||
| 8 | Disc | Brass B584 C85710 | ||||
| 9 | Body | Brass B584 C85710 | ||||
| 10 | Nipple | Brass B124 C37700 | ||||
| 11 | Nipple Nut | Brass B124 C37700 | ||||
Dimensions
| Part # | Size | D | H | L | |||
|---|---|---|---|---|---|---|---|
| AHV-0500 | 1/2” FIP | 2.30 | 2.36 | 2.21 | |||
| AHV-0750 | 3/4” FIP | 2.30 | 2.40 | 2.64 | |||
| AHV-1000 | 1” FIP | 2.30 | 3.05 | 2.84 | |||
| AHV-1250 | 1-1/4” FIP | 2.30 | 3.33 | 3.19 | |||
| AHV-0500C | 1/2” Solder | 2.30 | 2.36 | 2.21 | |||
| AHV-0750C | 3/4” Solder | 2.30 | 2.40 | 2.64 | |||
