AVS Radiator Air Valve - Straight
AVS Radiator Air Valve - Straight
• Chrome Plated Steam Air Vents
• 10 PSI
• AVS-125 - 1/8" Straight - MIP
• AVS-250 - 1/4" Straight - MIP
• AVS-750 - 3/4" MIP - 1/2" FIP Straight

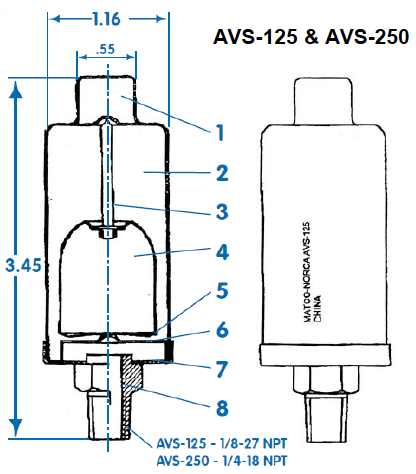

AVS-125 & AVS-250 - Material Specifications
| No. | Part | Material |
|---|---|---|
| 1 | Cap | Brass |
| 2 | Body | Brass |
| 3 | Needle | Brass |
| 4 | Ball | Brass |
| 5 | Spring | Brass |
| 6 | Support | Brass |
| 7 | Seat | Brass |
| 8 | Nut | Brass |

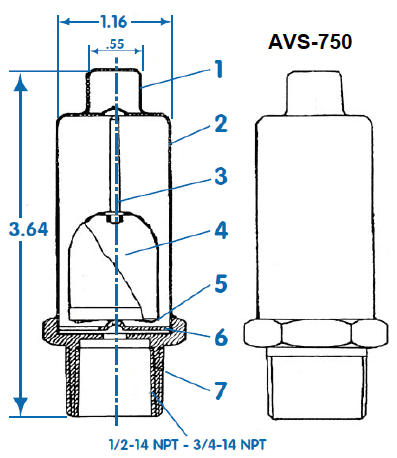

AVS-750 - Material Specifications
| No. | Part | Material |
|---|---|---|
| 1 | Cap | Brass |
| 2 | Body | Brass |
| 3 | Needle | Brass |
| 4 | Ball | Brass |
| 5 | Spring | Brass |
| 6 | Support | Brass |
| 7 | Seat | Brass |
