B41 Actuated Package
B41 Actuated Package
- Size range 1/2" - 8"
- Fire Saafe Certification API 607
- Stainless Steel construction
- Standard NACE MR 0175
- Full Port
- TFM seat material
- Live-loaded stem packing ensures seal-tight pressure containment

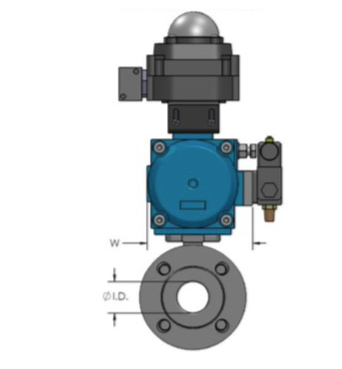

Side View

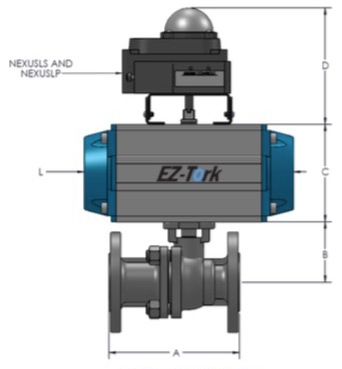

Front View
B41 Ball Valve Series (in.)
| SIZE | Ø I.D. | A | B |
|---|---|---|---|
| 1/2" | 0.59 | 4.25 | 2.00 |
| 3/4" | 0.79 | 4.62 | 2.20 |
| 1" | 0.98 | 5.00 | 2.30 |
| 1-1/2" | 1.50 | 6.50 | 3.00 |
| 2" | 1.97 | 7.00 | 3.20 |
| 2-1/2" | 2.48 | 7.50 | 4.00 |
| 3" | 2.99 | 8.00 | 4.40 |
| 4" | 3.94 | 9.00 | 5.60 |
| 6" | 5.91 | 15.50 | 8.50 |
| 8" | 7.87 | 18.00 | 9.68 |
EZ-TORK Actuator Dimensions (in.)
| MODEL | Actuator Code |
L (Length) |
W** (Width) |
C (Height) |
|
|---|---|---|---|---|---|
| DA | SR | ||||
| 50 | BNB | - | 6.06 | 2.78 | 2.76 |
| BDB | |||||
| 65 | CNB | CAB | 7.44 | 3.52 | 3.50 |
| CDB | |||||
| 75 | DNB | DAB | 8.27 | 4.04 | 3.94 |
| DDB | |||||
| 85 | ENB | - | 9.02 | 4.43 | 4.45 |
| EDB | |||||
| 95 | FNB | FAB | 10.39 | 4.96 | 4.84 |
| FDB | |||||
| 110 | GNB | GAB | 10.47 | 5.45 | 5.35 |
| - | |||||
| 125 | HNB | HAB | 13.27 | 6.18 | 6.34 |
| HDB | |||||
| 140 | - | IAB | 14.84 | 7.01 | 7.01 |
| IDB | |||||
| 160 | JNB | JAB | 16.22 | 7.72 | 7.87 |
| JDB | |||||
| 190 | KNB | - | 19.21 | 8.52 | 9.13 |
| - | |||||
| 210 | - | - | 21.65 | 9.27 | 10.04 |
| LDB | |||||
| 240 | - | MAB | 23.70 | 10.31 | 11.50 |
| MDB | |||||
Options & Accessories
The following tables contain dimensions for top and side mounted accessories, represented by dimension “D” (Height) and “W” (Width).
**D and W are defined at its maximum dimension.
| Limit Switch | D** | Rating |
|---|---|---|
| SVF | (in.) | |
| NEXUSLS | 5.0 | NEMA4 |
| NEXUSLP | 7.0 | NEMA4 |
| Pilot Valve | Add to "W" |
|---|---|
| SVF | (in.) |
| Series PV | 2.0 |
