BEV99 Actuated Package
BEV99 Actuated Package
- Size range: 1/2"- 2"
- Pressure rated for 1000 WOG
- 316 Stainless Steel construction
- Live-loaded stem seal design
- Full Port
- Threaded Ends (FNPT)

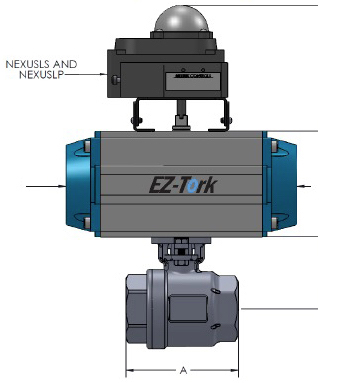

Side View
Front View
| SIZE | Ø I.D. | A | B |
|---|---|---|---|
| 1/2" | 0.59 | 2.28 | 1.67 |
| 3/4" | 0.78 | 2.63 | 1.80 |
| 1" | 0.98 | 3.07 | 2.20 |
| 1-1/2" | 1.50 | 4.09 | 3.00 |
| 2" | 1.979 | 4.96 | 3.27 |
EZ-TORK Actuator Dimensions (in.)
| MODEL | Actautor Code |
L (Length) |
W** (Width) |
C (Height) |
|
|---|---|---|---|---|---|
| DA | SR | ||||
| 50 | BNB | - | 6.06 | 2.78 | 2.76 |
| - | |||||
| 65 | CNB | CAB | 7.44 | 3.52 | 3.50 |
| CDB | |||||
| 75 | DNB | DAB | 8.27 | 4.04 | 3.94 |
| - | |||||
| 85 | ENB | - | 9.02 | 4.43 | 4.45 |
| EDB | |||||
| 95 | FNB | FAB | 10.39 | 4.96 | 4.84 |
| FDB | |||||
Options & Accessories
The following tables contain dimensions for top and side mounted accessories, represented by dimension “D” (Height) and “W” (Width).
**D and W are defined at its maximum dimension.
| Limit Switch | D** | Rating |
|---|---|---|
| SVF | (in.) | |
| NEXUSLS | 5.0 | NEMA4 |
| NEXUSLP | 7.0 | NEMA4 |
| Pilot Valve | Add to "W" |
|---|---|
| SVF | (in.) |
| Series PV | 2.0 |
