Extra Heavy Weld Fittings

Weld Fittings

Downloads:

Extra Heavy Weld Fittings

• 45° Elbows
• Long Radius 90° Elbows
• Short Radius 90° Elbows
• Caps
• Concentric Reducers
• Eccentric Reducers
• Reducing Tees
• Standard Tees
• Sizes 2" - 12"

Nominal Pipe Size	90° Elbow		45° Elbow	Tee		Caps
	Long Rad.	Short Rad.	Long Rad.	C	M	E
	A	A	B
2”	3.00	2.00	1.38	2.50	2.50	1.50
2-1/2”	3.75	2.50	1.75	3.00	3.00	1.50
3”	4.50	3.00	2.00	3.38	3.38	2.00
3-1/2”	5.25	3.50	2.25	3.75	3.75	2.50
4”	6.00	4.00	2.50	4.12	4.12	2.50
5”	7.50	5.00	3.12	4.88	4.88	3.00
6”	9.00	6.00	3.75	5.62	5.62	3.50
8”	12.00	8.00	5.00	7.00	7.00	4.00
10”	15.00	10.00	6.25	8.50	8.50	5.00
12”	18.00	12.00	7.50	10.00	10.00	6.00

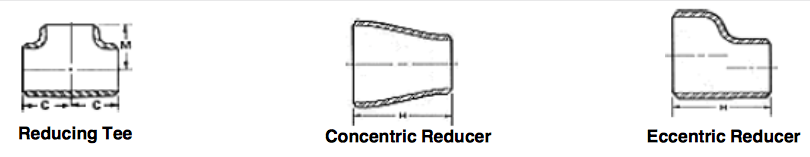

Nominal Pipe Size	Reducing Outlet Tees		Concentric & Eccentric Reducers	Nominal Pipe Size	Reducing Outlet Tees cont.		Concentric & Eccentric Reducers
	C	M	H		C	M	H
2” X 3/4”	2.50	1.75	3.00	10” X 8”	8.50	8.00	7.00
2” X 1”	2.50	2.00	3.00	12” X 6”	10.00	8.62	8.0
2” X 1-1/4”	2.50	2.25	3.00	12” X 8”	10.00	9.00	8.00
2” X 1-1/2”	2.50	2.38	3.00	12” X 10”	10.00	9.50	8.00
2-1/2” X 1”	3.00	2.25	3.50	14” X 8”	11.00	9.75	13.00
2-1/2” X 1-1/4”	3.00	2.50	3.50	14” X 10”	11.00	10.12	13.00
2-1/2” X 1-1/2”	3.00	2.62	3.50	14” X 12”	11.00	10.62	13.00
2-1/2” X 2”	3.00	2.75	3.50	16” X 10”	12.00	11.12	14.00
3” X 1-1/2”	3.38	2.88	3.50	16” X 12”	12.00	11.62	14.00
3” X 2”	3.38	3.00	3.50	16” X 14”	12.00	12.00	14.00
3” X 2-1/2”	3.38	3.25	3.50	18” X 12”	13.50	12.62	15.00
4” X 1-1/2”	4.12	3.38	4.00	18” X 14”	13.50	13.00	15.00
4” X 2”	4.12	3.50	4.00	18” X 16”	13.50	13.00	15.00
4” X 2-1/2”	4.12	3.75	4.00	20” X 16”	15.00	14.00	20.00
4” X 3”	4.12	3.88	4.00	20” X 18”	15.00	14.50	20.00
5” X 2-1/2”	4.88	4.25	5.00	24” X 16”	17.00	16.00	20.00
5” X 3”	4.88	4.38	5.00	24” X 18”	17.00	16.50	20.00
5” X 3-1/2”	4.88	4.50	5.00	24” X 20”	17.00	17.00	20.00
5” X 4”	4.88	4.62	5.00

Nominal Pipe Size	90° Elbow				45° Elbow		Straight Tees		Caps
	Long Rad.		Short Rad.		Long Rad.		STD	XS	STD	XS
	STD	XS	STD	XS	STD	XS
2”	1.60	2.20	1.00	1.50	0.81	1.19	3.50	4.00	0.60	0.75
2-1/2”	3.25	4.00	2.13	2.80	1.75	2.13	6.00	7.00	0.90	1.00
3”	5.00	6.50	3.00	4.25	2.63	3.50	7.00	8.50	1.50	1.75
3-1/2”	6.75	8.35	4.50	6.00	3.50	4.50	9.00	12.00	2.00	2.50
4”	9.00	13.50	6.25	8.50	4.50	6.10	12.00	15.80	2.50	3.00
5”	15.00	22.00	9.60	14.00	7.50	10.70	21.00	26.00	4.50	5.50
6”	24.50	35.00	18.00	23.00	12.0	17.50	34.00	40.00	6.50	9.00
8”	50.00	71.00	34.00	47.50	23.00	35.00	55.00	75.00	12.00	16.00
10”	88.00	107	58.00	70.00	43.00	53.00	85.00	105	20.00	25.00
12”	125	160	80.00	104	62.00	84.00	120	160	30.00	36.00

Nominal Pipe Size	Reducing Outlet Tees		Concentric & Eccentric Reducers		Nominal Pipe Size	Reducing Outlet Tees		Concentric & Eccentric Reducers
	STD	XS	STD	XS		STD	XS	STD	XS
2” X 3/4”	3.25	4.00	0.70	1.00	10” X 8”	84.50	109	22.00	29.50
2” X 1”	3.50	4.10	0.76	1.10	12” X 6”	114	165	31.00	40.00
2” X 1-1/4”	3.60	4.13	0.84	1.15	12” X 8”	117	175	32.00	42.00
2” X 1-1/2”	3.75	4.25	0.90	1.20	12” X 10”	119	184	34.00	43.50
2-1/2” X 1”	5.00	7.00	1.25	1.75	14” X 8”	155	225	58.50	78.50
2-1/2” X 1-1/4”	5.25	7.06	1.25	1.85	14” X 10”	158	233	59.20	79.20
2-1/2” X 1-1/2”	5.50	7.13	1.38	1.90	14” X 12”	160	237	60.00	80.00
2-1/2” X 2”	6.00	7.19	1.50	2.00	16” X 10”	186	266	69.50	89.00
3” X 1-1/4”	6.15	7.60	1.60	2.40	16” X 12”	191	270	70.00	90.00
3” X 1-1/2”	6.25	7.50	1.70	2.50	16” X 14”	194	275	71.00	91.00
3” X 2”	6.50	8.00	1.80	2.60	18” X 12”	230	307	83.00	113
3” X 2-1/2”	6.75	8.25	2.00	2.75	18” X 14”	236	315	84.00	114
4” X 1-1/2”	11.25	15.20	2.88	4.00	18” X 16”	241	321	85.00	115
4” X 2”	11.15	15.50	3.00	4.25	20” X 16”	338	475	124	169
4” X 2-1/2”	11.30	15.00	3.25	4.38	20” X 18”	340	477	125	170
4” X 3”	11.60	15.20	3.38	4.50	24” X 16”	516	598	145	190
5” X 2-1/2”	19.50	24.00	5.25	7.00	24” X 18”	519	601	148	195
5” X 3”	20.00	24.50	5.50	7.50	24” X 20”	522	604	150	200
5” X 3-1/2”	20.50	25.00	5.75	7.75
5” X 4”	21.00	25.50	6.00	8.25
