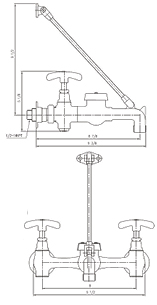

CL-340C Service Sink Faucet
CL-340C Service Sink Faucet
• Wall Bracket
• Heavy Duty Cast Brass
• Vacuum Breaker & Bucket Hook
• With Integral Stops
• Chrome Plated Satin Finish
.jpg)

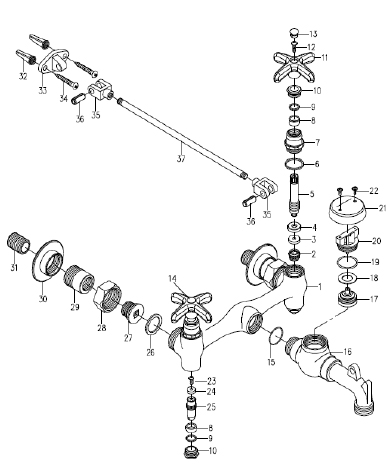

FT-350 - Service Sink Faucet - Material Specifications
| No. | Part | Material |
|---|---|---|
| 1 | Body | Brass C89550 |
| 2 | Sealing Seat | Brass C89550 |
| 3, 24, 26 | Washer | SE-719F |
| 4 | Washer Seat | Brass C89550 |
| 5 & 25 | Stem | Brass C89550 |
| 6 | Washer | Paper |
| 7 | Stem Nut | Brass C89550 |
| 8 | Washer | PTFE |
| 9 | Washer | Brass C89550 |
| 10 & 28 | Nut | Brass C37700 |
| 11 | Handle | Zinc |
| 12, 22, 23 | Screw | Brass C37700 |
| 13 & 14 | Button | POM |
| 15 & 19 | O-Ring | SN-719F |
| 16 | Spout | Brass C89550 |
| 17 | Float | POM |
| 18 | Disc Seal | Silicone |
| 20 | Insert | POM |
| 21 | Cover Plate | Brass C37700 |
| 27 | Insert | Brass C89550 |
| 29 | Connector | Brass C89550 |
| 30 | Offset Flange | Zinc |
| 31 | Nipple | Brass C89550 |
| 32 | Anchor | POM |
| 33 | Wall Flange | Zinc |
| 34 | Wall Screw | S.S. 304 |
| 35 | Connector | Zinc |
| 36 | Spring Pin | S.S. 304 |
| 37 | Wall Brace | Brass C37700 |
