MB51 Actuated Package
MB51 Actuated Package
- Size range 1/2" - 4"
- Multi-poreted, Flanged 3-way Ball Valve
- L-Port and T-Port options
- Positive shut-off on any of the three ports
- Complete 316 Stainless Steel construction
- Full Port Flow Path
- ANSI 150 Flanged Ends

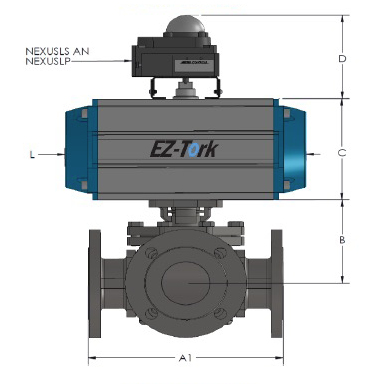

Side View

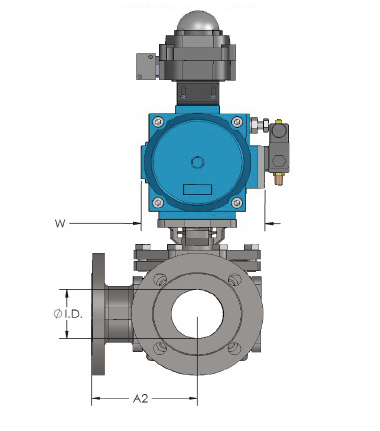

Front View
MB51 Ball Valve Series (in.)
| SIZE | ØI.D. | A1 | A2 | B |
|---|---|---|---|---|
| 1" | 0.98 | 7.48 | 3.74 | 2.45 |
| 1-1/2" | 1.50 | 8.66 | 4.33 | 4.17 |
| 2" | 1.89 | 10.00 | 5.00 | 4.37 |
| 2-1/2" | 2.44 | 11.50 | 5.75 | 4.66 |
| 3" | 2.99 | 12.01 | 6.02 | 5.37 |
| 4" | 3.56 | 14.53 | 7.28 | 6.16 |
EZ-TORK Actuator Dimensions (in.)
| MODEL | Actuator Code | L (Length) | W** (Width) | C (Height) | |
|---|---|---|---|---|---|
| DA | SR | ||||
| 50 | BNB | - | 6.06 | 2.78 | 2.76 |
| - | |||||
| 65 | CNB | - | 7.44 | 3.52 | 3.50 |
| - | |||||
| 75 | DNB | DAB | 8.27 | 4.04 | 3.94 |
| DDB | |||||
| 85 | ENB | - | 9.02 | 4.43 | 4.45 |
| - | |||||
| 95 | FNB | FAB | 10.39 | 4.96 | 4.84 |
| FDB | |||||
| 110 | GNB | - | 10.47 | 5.45 | 5.35 |
| GDB | |||||
| 125 | HNB | HAB | 13.27 | 6.18 | 6.34 |
| HDB | |||||
| 140 | - | IAB | 14.84 | 7.01 | 7.01 |
| IDB | |||||
| 160 | - | JAB | 16.22 | 7.72 | 7.87 |
| - | |||||
Options & Accessories
The following tables contain dimensions for top and side mounted accessories, represented by dimension “D” (Height) and “W” (Width).
**D and W are defined at its maximum dimension.
| Limit Switch | D** | Rating |
|---|---|---|
| SVF | (in.) | |
| NEXUSLS | 5.0 | NEMA4 |
| NEXUSLP | 7.0 | NEMA4 |
| Pilot Valve | Add to "W" |
|---|---|
| SVF | (in.) |
| Series PV | 2.0 |
