SB99 Actuated Package
SB99 Actuated Package
- Size range 1/2"- 2"
- Sanitary Ball Valve
- 316 Stainless steel construction. Seat and body seal material complies with FDA CFR Title 21 Part 177.1550
- "Tube-ID" flow path for drainability
- Interior finish of 20Ra and Silicone Free
- Blowout proof stem adds safety & reliability
- Tri clamp end connections
- Standard Anti-Static Device

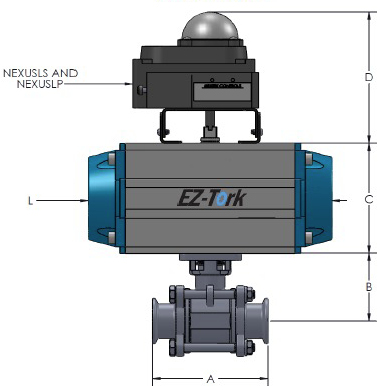

Side View

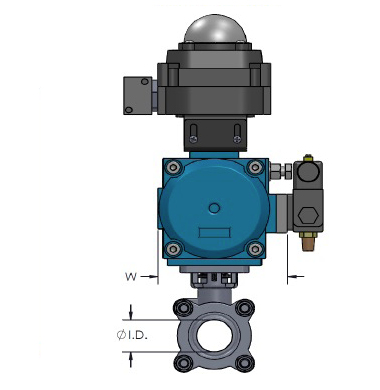

Front View
SB9 Ball Valve Series (in.)
SIZE | Ø I.D. | A | B |
---|---|---|---|
1/2" | 0.37 | 3.50 | 1.65 |
3/4" | 0.62 | 4.13 | 1.77 |
1" | 0.87 | 4.49 | 2.20 |
1-1/2" | 1.37 | 5.51 | 3.00 |
2" | 1.87 | 6.14 | 3.27 |
2-1/2" | 2.37 | 7.76 | 4.25 |
3" | 2.87 | 9.01 | 4.60 |
4" | 3.82 | 9.49 | 5.51 |
EZ-TORK Actuator Dimensions (in.)
MODEL | Actuator Code | L (Length) | W** (Width) | C (Height) | |
---|---|---|---|---|---|
DA | SR | ||||
32 | ANB | - | 4.33 | 1.85 | 1.97 |
- | |||||
50 | BNB | BAB | 6.06 | 2.78 | 2.76 |
BDB | |||||
65 | CNB | CAB | 7.44 | 3.52 | 3.50 |
CDB | |||||
75 | DNB | DAB | 8.27 | 4.04 | 3.94 |
DDB | |||||
85 | ENB | EAB | 9.02 | 4.43 | 4.45 |
EDB | |||||
95 | FNB | - | 10.39 | 4.96 | 4.84 |
FDB | |||||
110 | GNB | GAB | 10.47 | 5.45 | 5.35 |
- | |||||
125 | HNB | HAB | 13.27 | 6.18 | 6.34 |
HDB |
Options & Accessories
The following tables contain dimensions for top and side mounted accessories, represented by dimension “D” (Height) and “W” (Width).
**D and W are defined at its maximum dimension.
Limit Switch | D** | Rating |
---|---|---|
SVF | (in.) | |
NEXUSLS | 5.0 | NEMA4 |
NEXUSLP | 7.0 | NEMA4 |
Pilot Valve | Add to "W" |
---|---|
SVF | (in.) |
Series PV | 2.0 |
