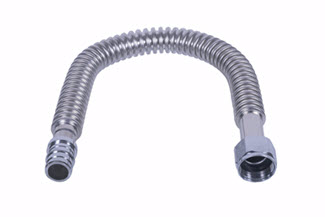

SSCWHPXCE - Lead Free Cold Expansion PEX Flexible Stainless Steel Water Heater Connectors - Corrugated
SSCWHPXCE - Lead Free Cold Expansion PEX Flexible Stainless Steel Water Heater Connectors - Corrugated
• Corrugated Stainless Steel Connectors
• 3/4” FIP x 3/4” Cold Expansion PEX
• Working Temp -4-302°F
• Working Pressure Max. 125 PSI
• NSF61, NSF14, cUPC Approved
• ASME A112.18.6, CSA B125.6 Approved
SSCWH-18PXCELF - 18” Long
SSCWH-24PXCELF - 24” Long
SSCWHPXCE - Corrugrated Flexible Stainless Steel Water Heater Connector - Material Specifications
| No. | Part | Material |
|---|---|---|
| 1 | Nut | HPb59-3 |
| 2 | Washer | EPDM |
| 3 | Hose | SS304 |
| 4 | PEX Fitting | C37100 |
| 5 | O-Ring | EPDM |
| 6 | Cover | Plastic POM |
