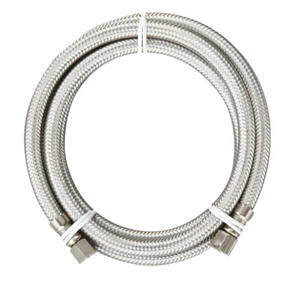

SSIM - Lead Free Braided Stainless Steel Ice Maker Connector
SSIM - Lead Free Braided Stainless Steel Ice Maker Connector
• Braided Stainless Steel Connector
• 1/4” Comp x 1/4” Comp
• For use in potable water distribution systems
• Durable, flexible water connector requires no cutting or soldering during installation
• Reinforced PVC inner hose is braided with stainless steel
• Brass hex nuts are plated for corrosion resistance
• 8-sided pneumatic crimp ensures reliable nut-to hose connection
• Internal corrosion resistance to harsh water conditions
Material Specifications
| Part No. | Description | Working Temperature | Working Pressure | Approvals |
|---|---|---|---|---|
| SSIM-60LF | 1/4” Comp x 1/4” Comp x 60” Stainless Steel Braided Connectors | 0-158°F | Max.125 psi | cUPC NSF/ANSI 61 Lead Free |
| SSIM-72LF | 1/4” Comp x 1/4” Comp x 72” Stainless Steel Braided Connectors | 0-158°F | Max.125 psi | cUPC NSF/ANSI 61 Lead Free |
| SSIM-96LF | 1/4” Comp x 1/4” Comp x 96” Stainless Steel Braided Connectors | 0-158°F | Max.125 psi | cUPC NSF/ANSI 61 Lead Free |
